Fonitaniya™ Medical Series AED 7000
- Advanced biphasic waveform for effective and precise defibrillation.
- Quick response with a 3-step process and 20 visual and audible prompts.
- Long-lasting battery with 100 discharges at 200J or 120 at 150J.
- Weekly self-tests ensure the AED is always ready for emergencies.
Attributes of Fonitaniya AED-7000
| Brand | Fonitaniya |
| Serial Number | FON-AED7000 |
| Type | Portable Automated External Defibrillator (AED) |
| Pulse Type | Biphasic Waveform |
| Energy Sequence | 150, 150, 200 Joules |
| Charge Time | 4 sec to 150J | 8 sec to 200J |
| Combined Analysis and Charge Time | Less than 20 sec to 150J | Less than 30 sec to 200J |
| Battery | Non-rechargeable LiMnO2, 12V, 3.0 Ah |
| Battery Capacity | 100 discharges at 200J | 120 discharges at 150J |
| Shelf Life | 10 years (5 years storage + 5 years standby) |
| Self-Test | Weekly self-test to ensure readiness |
| Controls | Two buttons (On/Off, Shock) |
| Prompts | 20 Audible Prompts | LED Visual Prompts |
| Dimensions | 300 x 210 x 80 mm (11.8 x 8.3 x 3.1 inches) |
| Weight | 2 kg (4.4 lbs) |

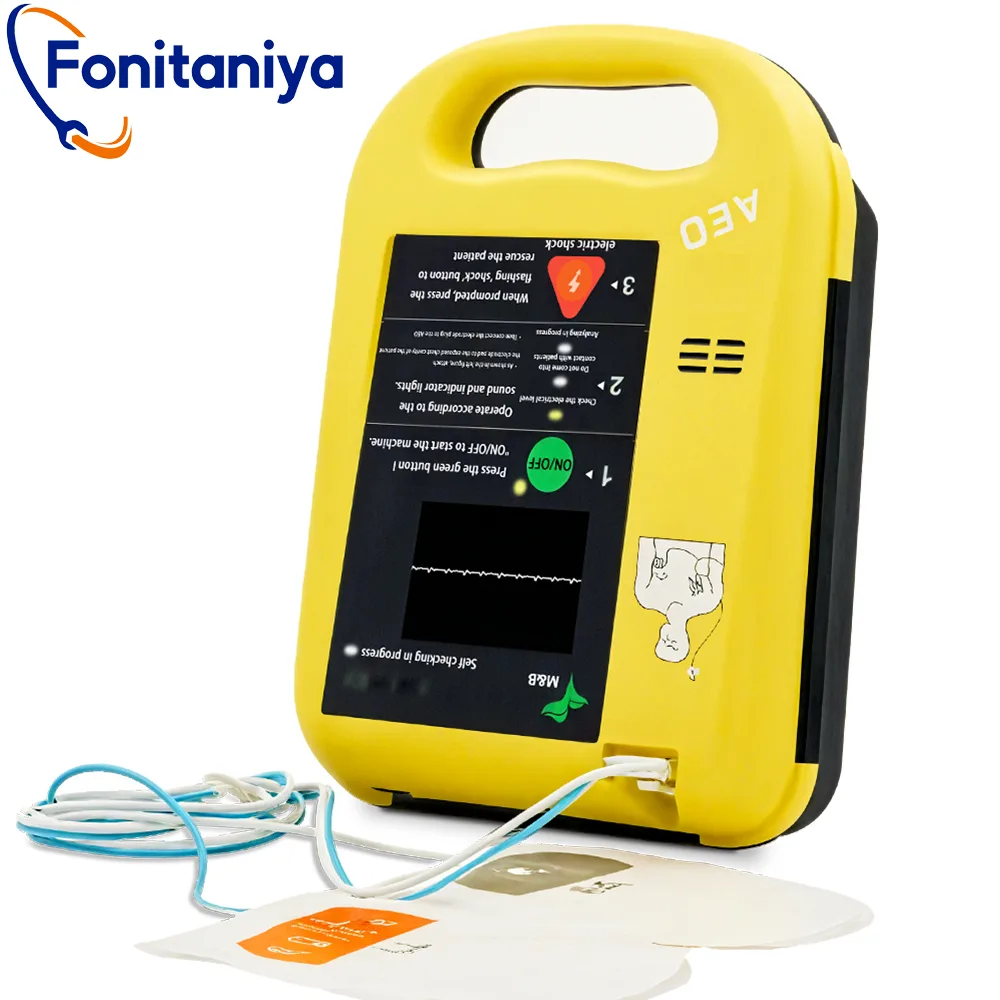

Fonitaniya Heart Saver External Defibrillator Type 7000
The Fonitaniya FON-AED7000 is a portable automated external defibrillator (AED) designed to deliver rapid and effective defibrillation during cardiac emergencies. Featuring advanced biphasic waveform technology, this AED analyzes the patient’s ECG to determine whether defibrillation is necessary and delivers the appropriate energy level. Its three-step operation and simple two-button controls make it easy to use, even for non-medical personnel.
Equipped with robust features like extensive visual and audio prompts, weekly self-tests, and a durable 12V LiMnO2 battery, the FON-AED7000 ensures reliability and readiness. With a lightweight design and compact dimensions, this AED is ideal for use in homes, public spaces, or medical facilities, offering peace of mind in critical situations.
Instruction Manual of Fonitaniya AED-7000
1. Overview
The AED-7000 is a portable automated external defibrillator designed to provide efficient and effective defibrillation in cases of sudden cardiac arrest. This device is equipped with advanced ECG analysis and biphasic waveform technology to ensure optimal heart rhythm restoration with minimal risk.
2. Safety Information
- Always follow local medical protocols and guidelines.
- Ensure the area is clear of water or conductive materials before use.
- Only trained personnel or those following the device’s audio/visual prompts should use the AED.
- Do not use the AED on infants under one year unless specifically trained for pediatric use.
- Regularly inspect the device to confirm it is operational and ready for emergency use.

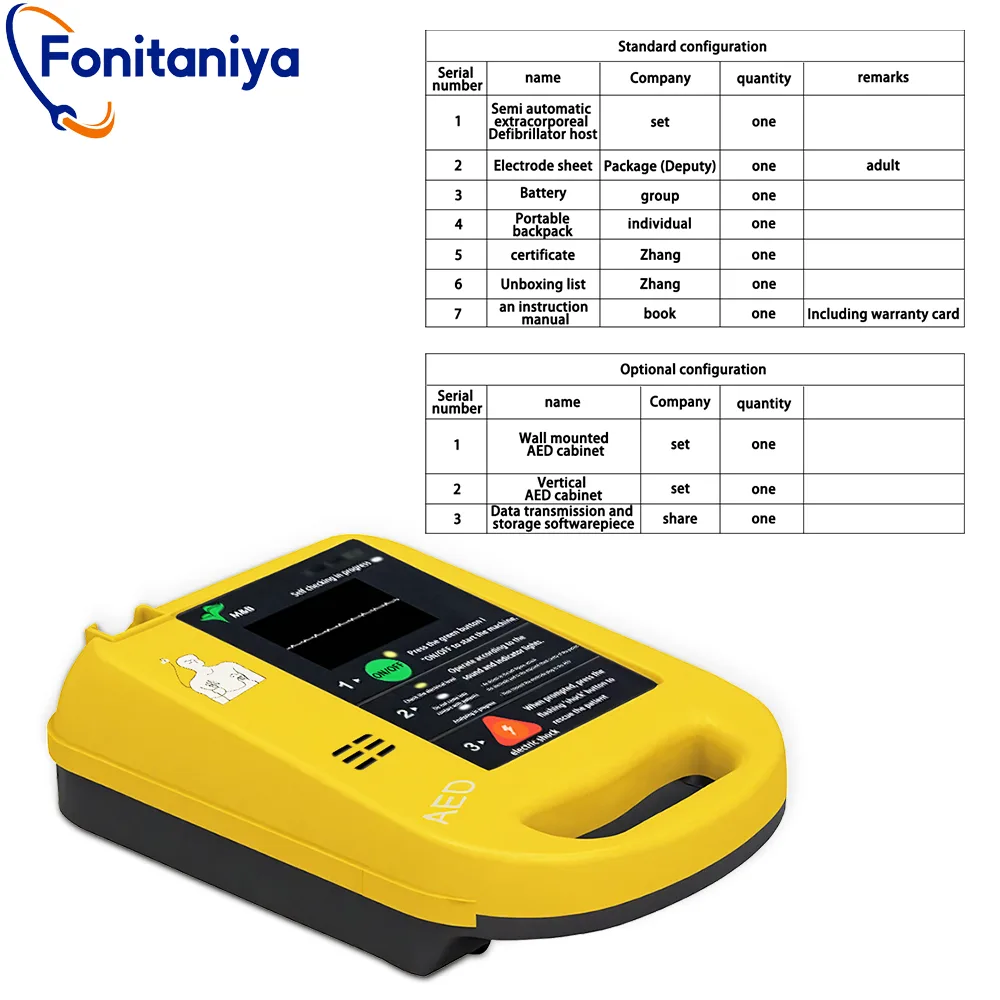

3. Components
- AED-7000 Device
- Adult Electrode Pads
- Non-rechargeable LiMnO2 Battery (pre-installed)
- User Manual

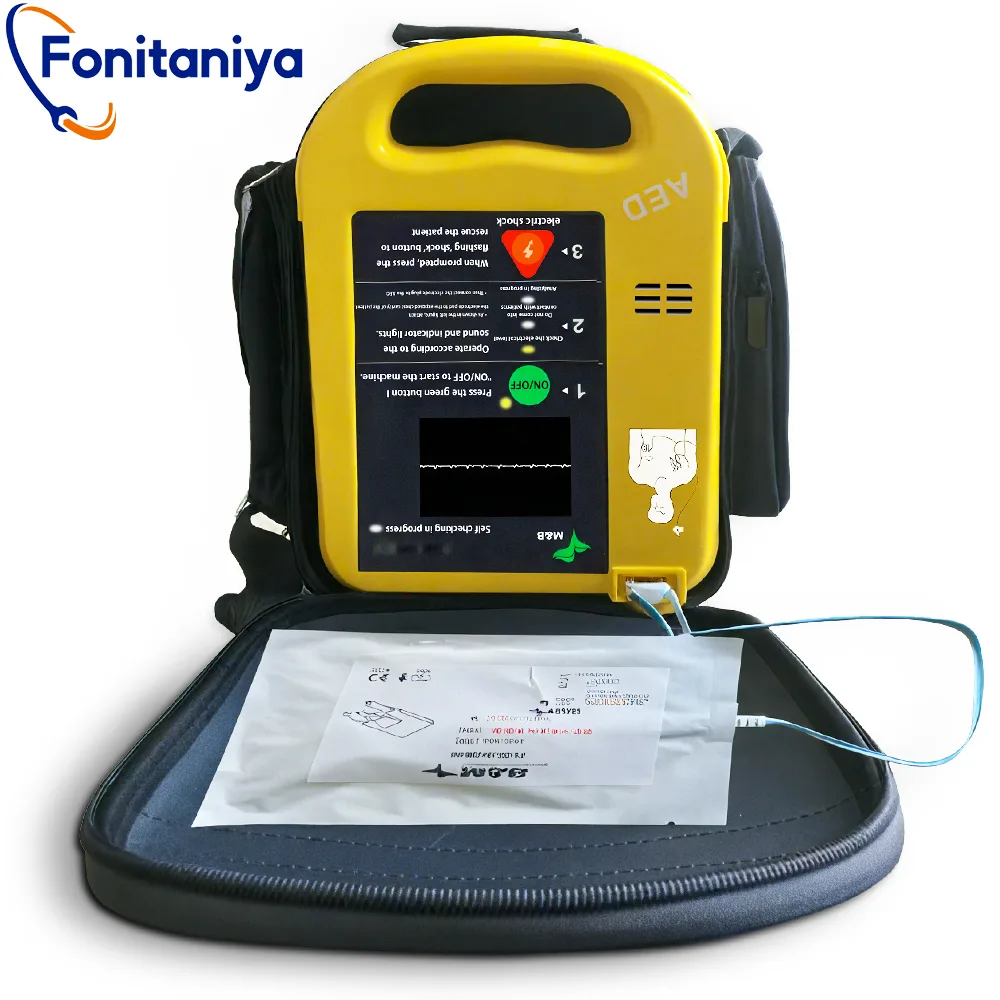

- Carrying Case
4. Setting Up the AED
- Insert Battery: Ensure the battery is correctly installed. The device will run a self-check.
- Attach Pads: Place the pads in the slots indicated on the AED body for immediate access.
- Power On: Press the power button to initiate the self-check and prepare for use.

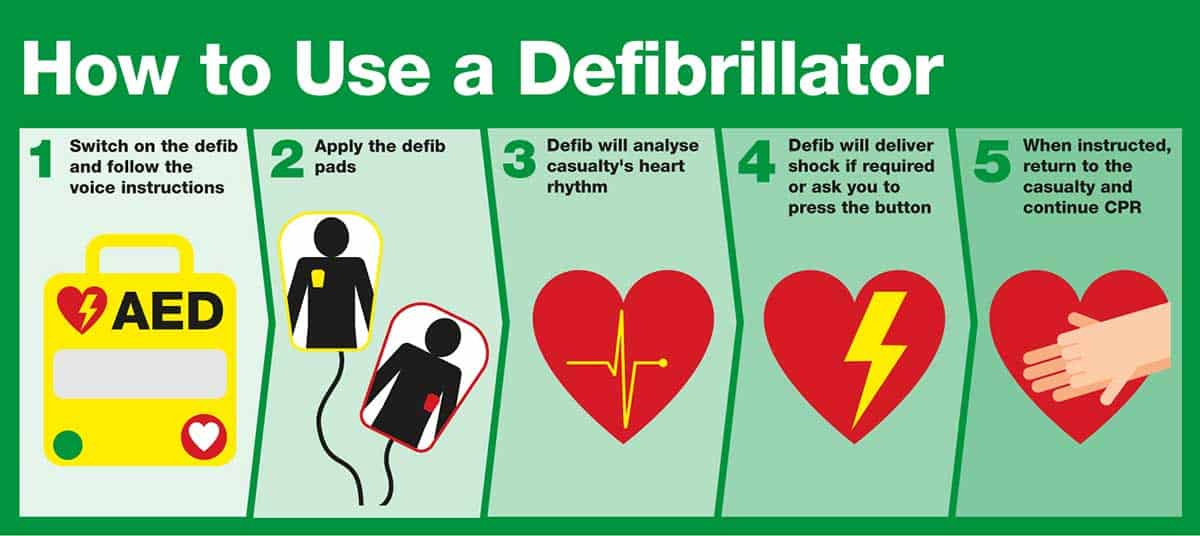

5. Using the AED-7000
- Assess the Situation: Ensure the patient is unconscious and not breathing normally.

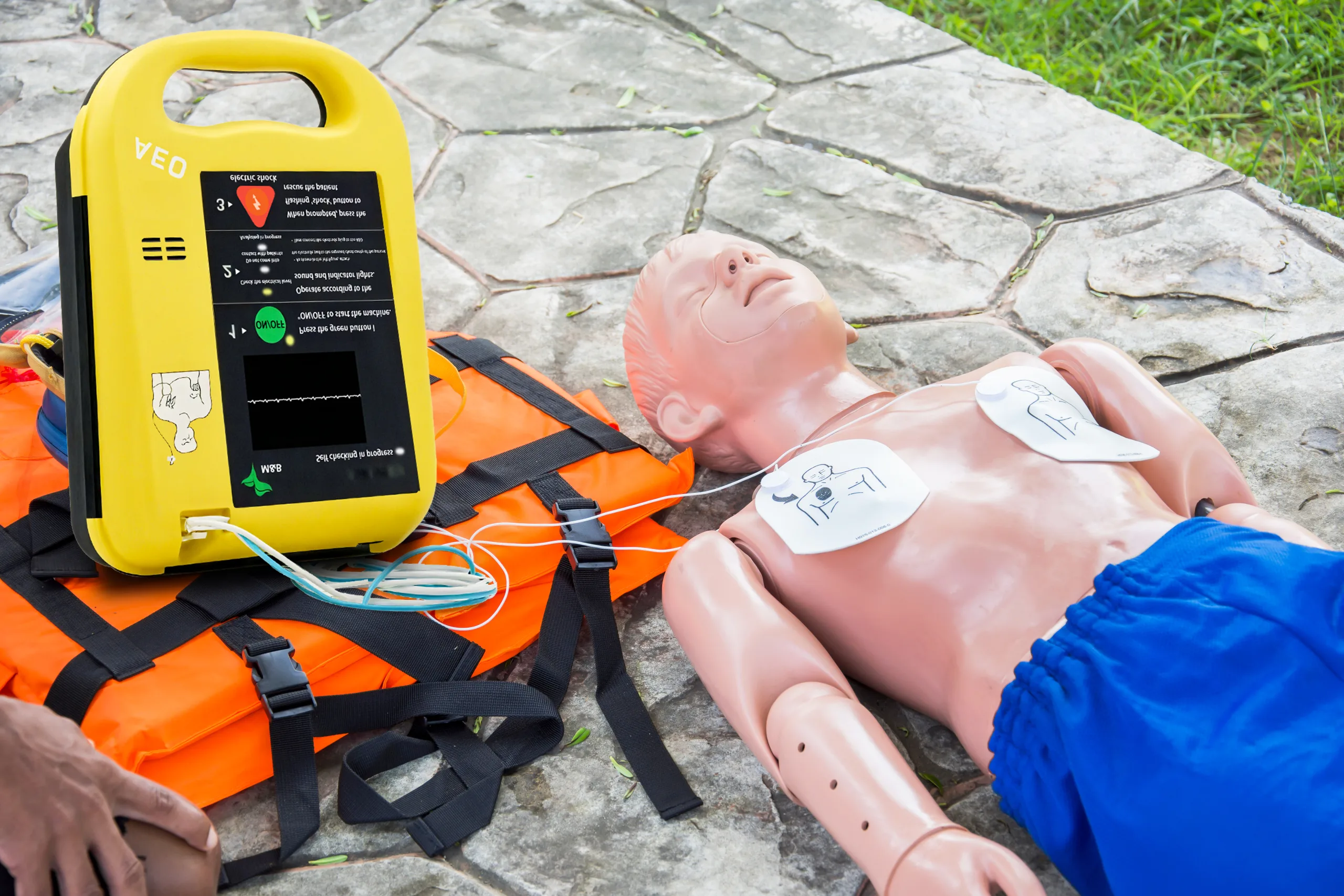

- Place Pads:
- Pad 1: Place on the upper right side of the chest, just below the collarbone.
- Pad 2: Place on the lower left side, below the armpit.
- Follow Prompts: The AED will analyze the patient’s heart rhythm and provide audible and visual instructions.
- Shock Delivery:
- If advised, press the Shock button when instructed.
- Ensure nobody is touching the patient before delivering the shock.
- Post-Shock Care: Follow any subsequent instructions provided by the AED. Continue CPR as necessary.
6. Maintenance and Care
- Self-Tests: The device runs weekly self-checks automatically.
- Battery Replacement: Replace the battery if it falls below operational levels or after 100 uses.
- Electrode Pads: Replace after each use or if expired.
- Storage: Store in a clean, dry place at temperatures between 15-28°C (59-82°F).
7. Troubleshooting
- Device Fails to Turn On: Check the battery installation.
- Self-Test Failure: Consult customer support for inspection.
- Visual/Audio Prompts Not Working: Replace battery and check device status.
