Double Sided Automotive Tape for EV Battery Cells
- Flame Retardant: Complies with UL 94 and other flammability standards for safety in EV applications.
- High Tack Adhesive: Excellent bonding to low surface energy substrates and foams ensures durability.
- Dielectric Strength: Provides electrical insulation to protect against high voltages and arcing.
- Easy Application: Pressure-sensitive design allows for quick, strong bonding without curing time.
Attributes of Double Sided Automotive Tape for EV Battery Cells
| Attribute | Value |
|---|---|
| Brand | Fonitaniya |
| Serial Number | FON 10040 |
| Liner | Kraft |
| Adhesive 1 | Flame-Retardant Acrylic |
| Carrier | Polyester |
| Adhesive 2 | ULNA Acrylic |
| Total Thickness | 6.1 mil (0.0061 inches) |
| Minimum Service Temperature | 50°F (10°C) |
| Maximum Service Temperature | 350°F (175°C) |
| Peel Adhesion | >10,000 N/m (Lbf/in) for various substrates |
| Dielectric Strength | > 10,000 kV |
| Storage/Shelf Life | 1 year at 64-72°F (18-22°C) |
Dielectric Bonding Tape for EV Battery Cells
Product Overview

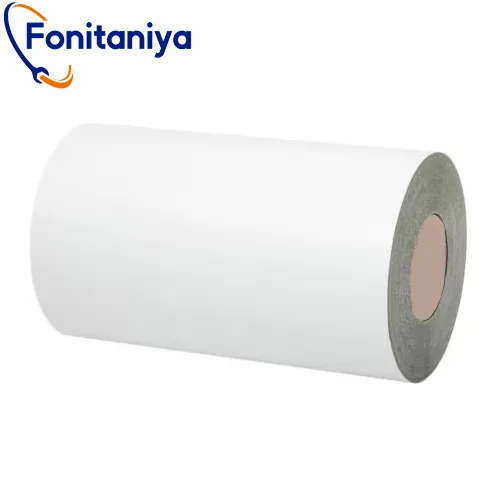

The FON-10040 double-sided automotive tape for EV battery cells is specifically engineered for heat resistance and dielectric requirements in electric vehicle battery packs. This high-performance tape consists of a flame-retardant acrylic adhesive coated on a robust polyester carrier, ensuring superior adhesion and durability. Designed to meet the demanding standards of the automotive industry, this tape is an essential component for securing EV battery cells while providing necessary electrical insulation.
Applications and Benefits

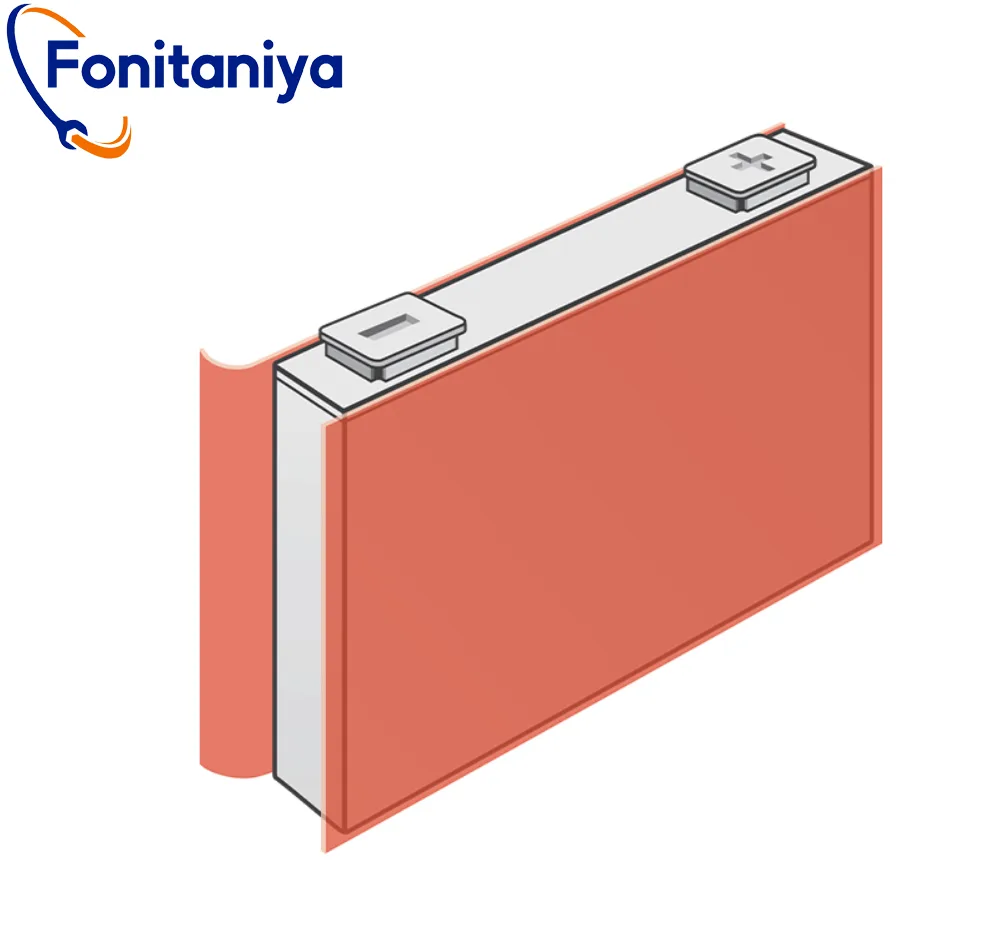

This tape is ideal for cell-to-cell bonding in EV battery applications, enabling manufacturers to assemble battery packs that are not only lightweight and durable but also compliant with crucial safety regulations. By using Fonitaniya’s double-sided tape, you eliminate the need for liquid adhesives, providing ease of use with no curing time. This enhances efficiency in production while ensuring that your battery assembly maintains structural integrity and safety during operation.
If you want to customize tapes of other specifications, you can contact us to customize the specifications you want.
When can I get my quotation?
We will provide you with a detailed quotation as soon as we receive your inquiry. Typically, we will send you a quote within 24 hours. If your requirements are complex or need custom services, it might take a bit longer, but we will keep you informed of the progress promptly.
What is your order schedule?
After confirming your order, we will schedule production based on your requirements and our production plan. Generally, the production cycle for standard orders is 2-3 weeks. If you have an urgent order, please contact us as soon as possible. We will do our best to accommodate your request and arrange expedited production.
Can I get samples?
Yes, we are happy to provide samples for you. Please contact our sales team with your specific needs and sample type, and we will arrange for the samples to be sent to you as soon as possible. Some samples may require a small fee, but in most cases, we offer free samples for testing and evaluation.
Can I print my logo on the tape?
Absolutely. We offer customization services and can print your logo on the tape according to your requirements. Please provide a high-quality logo file and specific printing requirements. Our design team will create a draft design for your approval. We will also provide samples for you to confirm before production.
What if I don't have detailed requirements?
If you are unsure about the specific requirements, our technical team is more than happy to offer professional advice. Just tell us your application scenario and basic needs, and we will recommend the most suitable tape solution based on our extensive experience and wide range of products. We can also provide sample testing to ensure our products meet your needs.
