FR 700
-
-
Superior Flame Resistance & Safety – With a UL94 V-0 rating, FR700 ensures top-tier fire protection in electrical insulation.
-
Versatile Surface & Durability – One-side fine matte, one-side velvet finish offers aesthetic appeal and robust mechanical properties.
-
High-Temperature Stability & Formability – Maintains structural integrity under heat, making it ideal for precision insulation applications.
-
Enhanced Shielding Capabilities – When laminated with metal foil, it provides effective EMI/RFI shielding for sensitive electronics.
-
FR 700 Data Sheet
| Material | Color | Thickness (mm) | Flammability Class | RTI (°C) – Electrical | RTI (°C) – Mechanical |
|---|---|---|---|---|---|
| Polycarbonate (PC) – Film | NC | 0.20-0.22 | VTM-0 | 80 | 80 |
| Polycarbonate (PC) – Film | BK | 0.1 | VTM-2 | 80 | 80 |
| Polycarbonate (PC) – Film | BK | 0.25 | VTM-0 | 80 | 80 |
| Polycarbonate (PC) – Sheet | NC | 0.121 | V-2 | 80 | 80 |
| Polycarbonate (PC) – Sheet | NC | 1.0-1.1 | V-2 | 80 | 80 |
| Polycarbonate (PC) – Sheet | NC | 0.120-0.132 | VTM-2 | 80 | 80 |
| Polycarbonate (PC) – Sheet | NC | 0.5-0.55 | V-2 | 80 | 80 |
| Polycarbonate (PC) – Sheet | NC | 0.8 | V-2 | 80 | 80 |
| Polycarbonate (PC) – Sheet | NC | 3.0 | V-2 | 80 | 80 |
| Polycarbonate (PC) – Sheet | NC | 0.8 | V-0 | 80 | 80 |
| Polycarbonate (PC) – Sheet | NC | 3.0 | V-0 | 80 | 80 |
FR 700 Overview

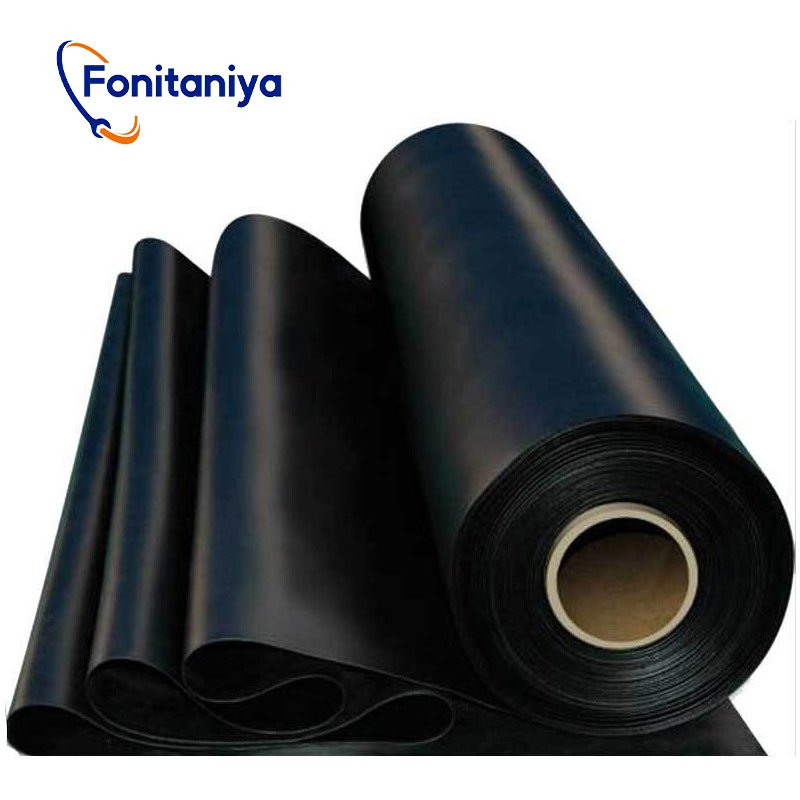

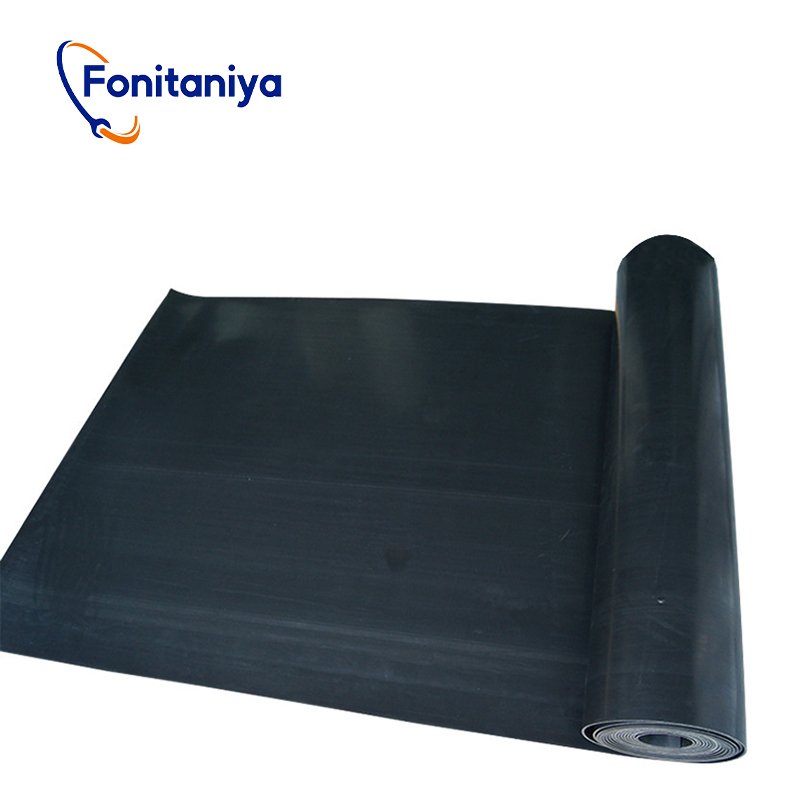

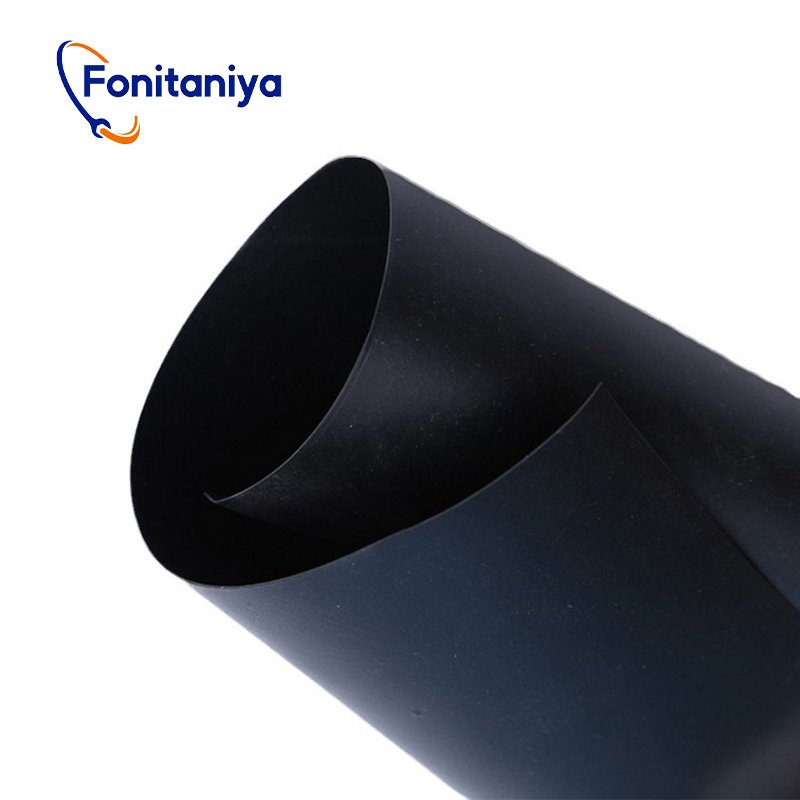

As a trusted innovator in the adhesive industry for over 15 years, Fonitaniya™ continues to push boundaries, providing top-tier solutions like FR700 to meet the evolving needs of modern electronics and industrial applications.FR700 is a high-performance, flame-retardant polycarbonate film designed for advanced insulation and EMI/RFI shielding applications. Featuring a sleek black finish with a fine matte texture on one side and a velvet surface on the other, it offers exceptional mechanical strength, dimensional stability under high temperatures, and a UL94 V-0 flammability rating. Ideal for power supply insulation, PCB protection, and business equipment, FR700 ensures safety and reliability in demanding environments.
Using Procedure for FR700 Polycarbonate Film Tape
1. Surface Preparation
Ensure the surface is clean, dry, and free from dust, oil, or debris to maximize adhesion and insulation performance.
2. Cutting & Shaping
Use a precision cutter, laser, or die-cutting method to achieve accurate dimensions. Avoid excessive force to prevent material stress.
3. Forming & Bending
FR700 has excellent formability. When heat forming, maintain controlled temperatures to prevent warping or degradation.
4. Lamination & Bonding
For EMI/RFI shielding, laminate with metal foil using compatible adhesives. Apply uniform pressure to ensure full adhesion.
5. Installation & Application
Place the film carefully over the designated area, ensuring it covers insulation points fully. Secure with mechanical fasteners or heat-resistant adhesives if needed.
Matters Needing Attention
-
Heat Sensitivity: Avoid prolonged exposure to extreme temperatures above its rated thermal stability to prevent deformation.
-
Chemical Compatibility: Check for resistance before exposing the film to harsh chemicals or solvents.
-
Storage Conditions: Keep in a cool, dry place away from direct sunlight and moisture to maintain product integrity.
-
Electrical Safety: Ensure proper grounding when used for insulation in high-voltage applications.
If you want to customize tapes of other specifications, you can contact us to customize the specifications you want.
When can I get my quotation?
We will provide you with a detailed quotation as soon as we receive your inquiry. Typically, we will send you a quote within 24 hours. If your requirements are complex or need custom services, it might take a bit longer, but we will keep you informed of the progress promptly.
What is your order schedule?
After confirming your order, we will schedule production based on your requirements and our production plan. Generally, the production cycle for standard orders is 2-3 weeks. If you have an urgent order, please contact us as soon as possible. We will do our best to accommodate your request and arrange expedited production.
Can I get samples?
Yes, we are happy to provide samples for you. Please contact our sales team with your specific needs and sample type, and we will arrange for the samples to be sent to you as soon as possible. Some samples may require a small fee, but in most cases, we offer free samples for testing and evaluation.
Can I print my logo on the tape?
Absolutely. We offer customization services and can print your logo on the tape according to your requirements. Please provide a high-quality logo file and specific printing requirements. Our design team will create a draft design for your approval. We will also provide samples for you to confirm before production.
What if I don't have detailed requirements?
If you are unsure about the specific requirements, our technical team is more than happy to offer professional advice. Just tell us your application scenario and basic needs, and we will recommend the most suitable tape solution based on our extensive experience and wide range of products. We can also provide sample testing to ensure our products meet your needs.
