ITO Conductive Adhesive Film
- High optical transmission and stable conductivity for superior performance.
- Flexible and durable design with excellent temperature resistance (up to 120°C).
- Protective removable films on both sides for easy handling.
- Ideal for advanced applications such as touch screens, sensors, and solar cells.
Attributes of ITO Conductive Film
Brand | Fonitaniya |
Serial Number | FON-10077 |
Width | 406 mm (15.98 inches) |
Thickness | 0.05/0.125/0.188 mm (0.002/0.0049/0.0074 inches) |
Substrate | Polyester Film (PET) |
ITO Conductive Layer | Indium Tin Oxide (ITO) |
Full Light Transmittance | 80 ± 3% |
Haze | < 4% |
Surface Resistance | 150 ± 30 Ω/0.05/0.125 mm, 800 ± 30 Ω/0.188 mm |
Applications | Touch screens, displays, surface heating agents, solar cells |

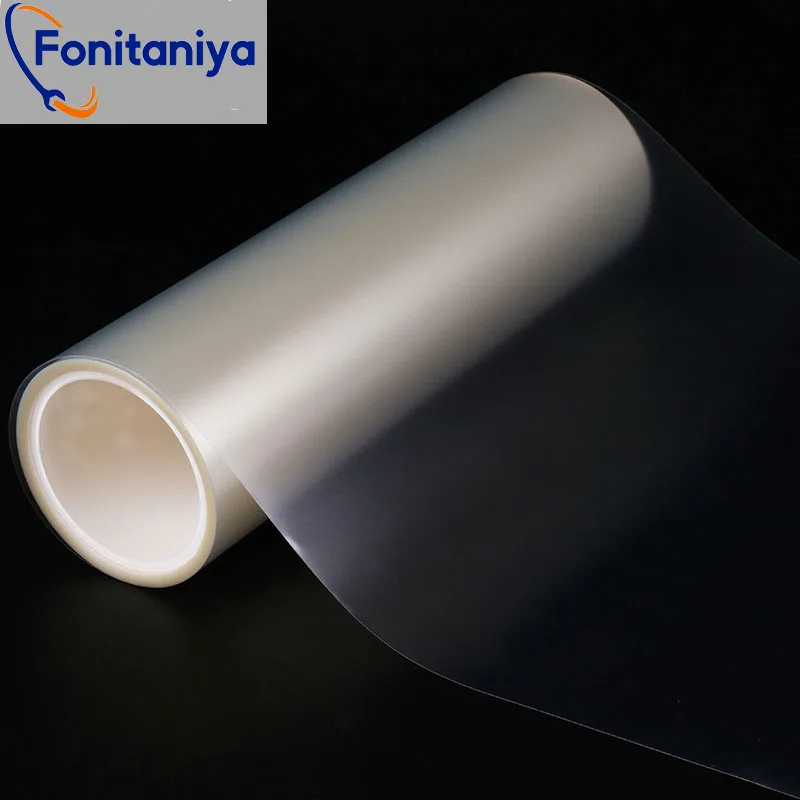

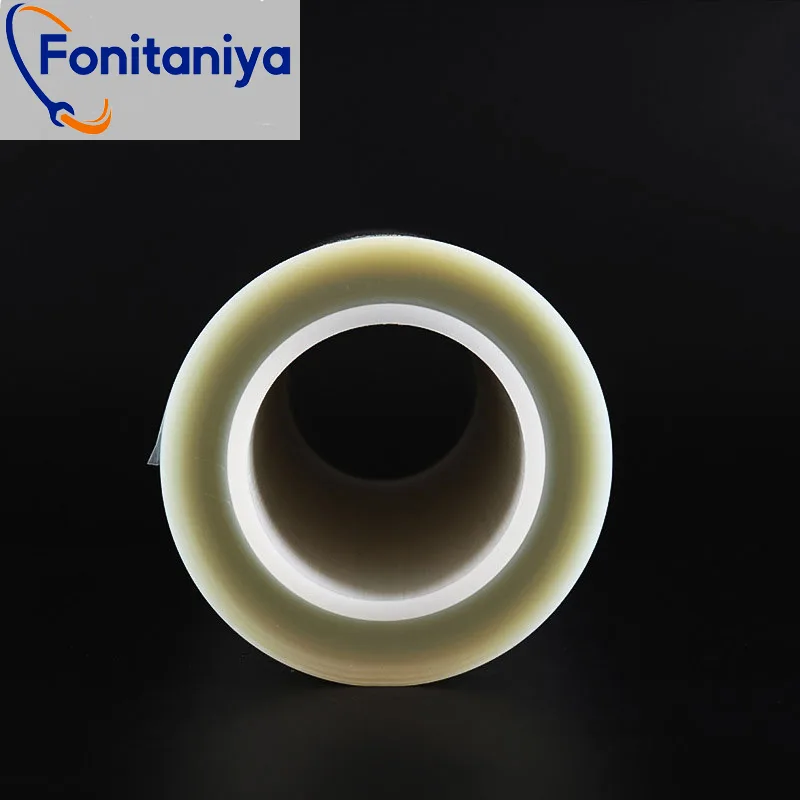

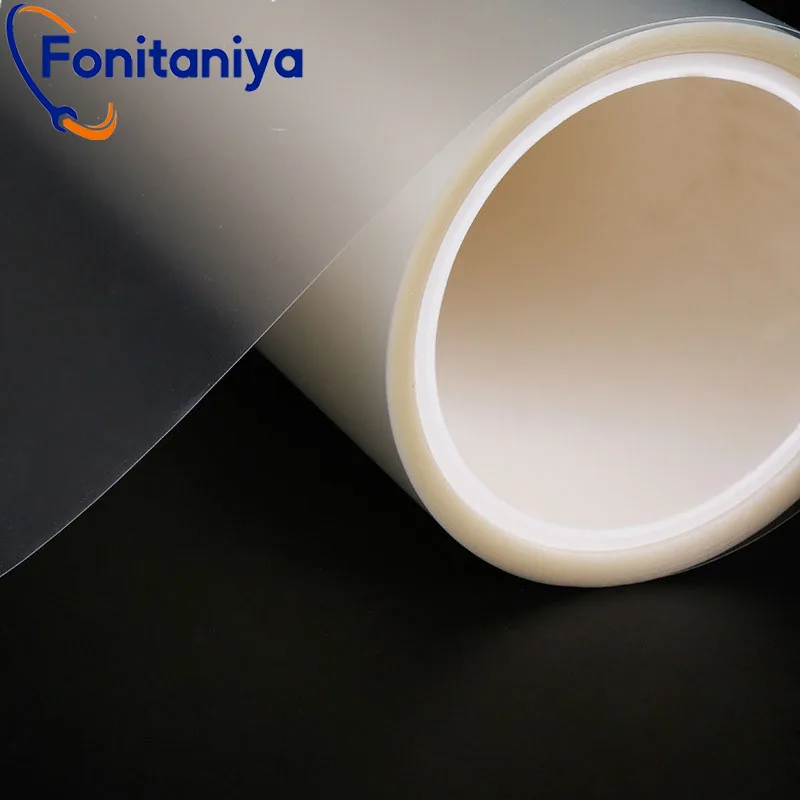

ITO Coated PET Film
This ITO conductive film(FON-10077) is a high-performance product engineered using advanced magnetron sputtering technology, where a conductive indium tin oxide (ITO) coating is applied to a transparent polyester (PET) substrate. It delivers outstanding optical transmittance of 80 ± 3% and stable conductivity, making it an excellent choice for a wide range of advanced applications. Its low haze (<4%) ensures crystal-clear visibility while its flexible, durable design resists temperatures up to 120°C.
Widely used in industries such as electronics, renewable energy, and communication, this film is suitable for EL, LCD, CRT, and PDP displays, touchscreens, handwriting input devices, and flexible solar cells. The protective film layers on both sides safeguard the conductive surface during handling and installation, ensuring long-lasting performance and reliability.
Application
Ideal for transparent conductive layers in touch screens, flexible solar cells, and displays.
If you want to customize tapes of other specifications, you can contact us to customize the specifications you want.
When can I get my quotation?
We will provide you with a detailed quotation as soon as we receive your inquiry. Typically, we will send you a quote within 24 hours. If your requirements are complex or need custom services, it might take a bit longer, but we will keep you informed of the progress promptly.
What is your order schedule?
After confirming your order, we will schedule production based on your requirements and our production plan. Generally, the production cycle for standard orders is 2-3 weeks. If you have an urgent order, please contact us as soon as possible. We will do our best to accommodate your request and arrange expedited production.
Can I get samples?
Yes, we are happy to provide samples for you. Please contact our sales team with your specific needs and sample type, and we will arrange for the samples to be sent to you as soon as possible. Some samples may require a small fee, but in most cases, we offer free samples for testing and evaluation.
Can I print my logo on the tape?
Absolutely. We offer customization services and can print your logo on the tape according to your requirements. Please provide a high-quality logo file and specific printing requirements. Our design team will create a draft design for your approval. We will also provide samples for you to confirm before production.
What if I don't have detailed requirements?
If you are unsure about the specific requirements, our technical team is more than happy to offer professional advice. Just tell us your application scenario and basic needs, and we will recommend the most suitable tape solution based on our extensive experience and wide range of products. We can also provide sample testing to ensure our products meet your needs.
