Attributes of EMI/Eddy Current Shielding Ferrite Sheet
| Attribute | Value |
|---|---|
| Brand | Fonitaniya |
| Serial Number | FON-10052 |
| Application Frequency | 10 MHz – 6 GHz |
| Available Thickness | 100 µm (0.004″), 200 µm (0.008″), 300 µm (0.012″), 500 µm (0.020″) |
| Standard Dimensions | 300 mm x 200 mm (11.81″ x 7.87″) |
| Magnetic Permeability (at 13.56 MHz) | 45 |
| Temperature Range | -25°C to 120°C (-13°F to 248°F) |
| Surface Impedance | 1 x 10⁶ Ω/□ |
| Environmental Standards | Halogen-Free, PVC-Free |

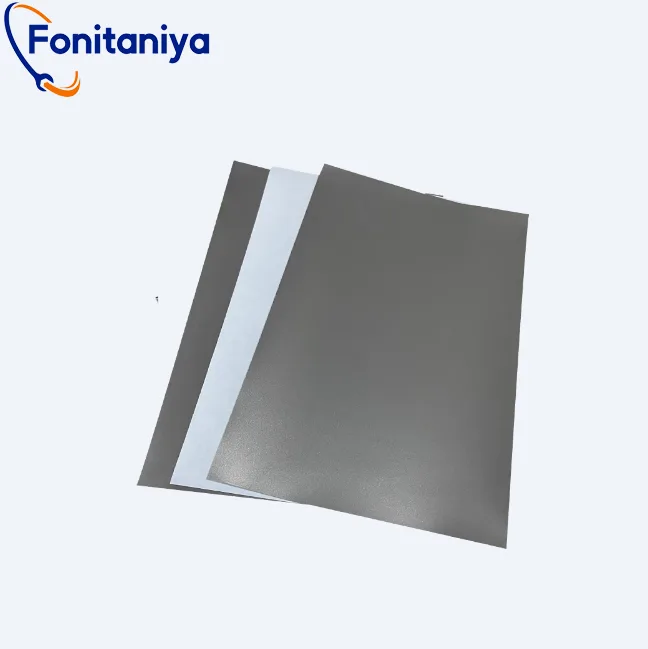

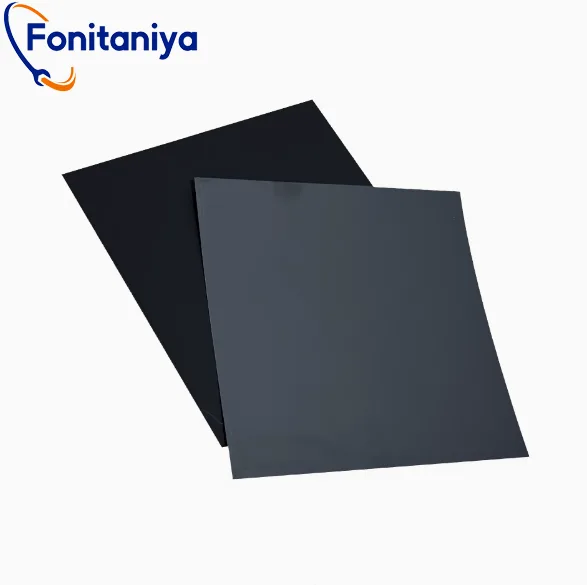

Ferrite Sheet for RFID and NFC
The Fonitaniya NFC/RFID Ferrite Sheet is an advanced solution for suppressing electromagnetic interference (EMI) in NFC, RFID, and wireless power systems. Designed to effectively isolate metal-induced eddy currents, this sheet improves magnetic flux management, boosting energy transfer and communication range. Its low absorption rate at 13.56 MHz ensures optimal signal clarity for data transmission.
Made from flexible, durable material, the ferrite sheet is easy to cut and shape, making it suitable for various design requirements. It complies with RoHS and HF standards, offering environmentally friendly and reliable performance. Whether for industrial or consumer electronics, this product ensures efficiency and enhances operational performance.
Application Description
- Used in NFC systems for enhancing communication range and data accuracy.
- Ideal for EMI suppression in RFID and wireless charging systems.
- Suitable for improving magnetic flux management in high-frequency devices.
- Compatible with die-cutting and shaping for custom electronic configurations.
If you want to customize tapes of other specifications, you can contact us to customize the specifications you want.
When can I get my quotation?
We will provide you with a detailed quotation as soon as we receive your inquiry. Typically, we will send you a quote within 24 hours. If your requirements are complex or need custom services, it might take a bit longer, but we will keep you informed of the progress promptly.
What is your order schedule?
After confirming your order, we will schedule production based on your requirements and our production plan. Generally, the production cycle for standard orders is 2-3 weeks. If you have an urgent order, please contact us as soon as possible. We will do our best to accommodate your request and arrange expedited production.
Can I get samples?
Yes, we are happy to provide samples for you. Please contact our sales team with your specific needs and sample type, and we will arrange for the samples to be sent to you as soon as possible. Some samples may require a small fee, but in most cases, we offer free samples for testing and evaluation.
Can I print my logo on the tape?
Absolutely. We offer customization services and can print your logo on the tape according to your requirements. Please provide a high-quality logo file and specific printing requirements. Our design team will create a draft design for your approval. We will also provide samples for you to confirm before production.
What if I don't have detailed requirements?
If you are unsure about the specific requirements, our technical team is more than happy to offer professional advice. Just tell us your application scenario and basic needs, and we will recommend the most suitable tape solution based on our extensive experience and wide range of products. We can also provide sample testing to ensure our products meet your needs.
