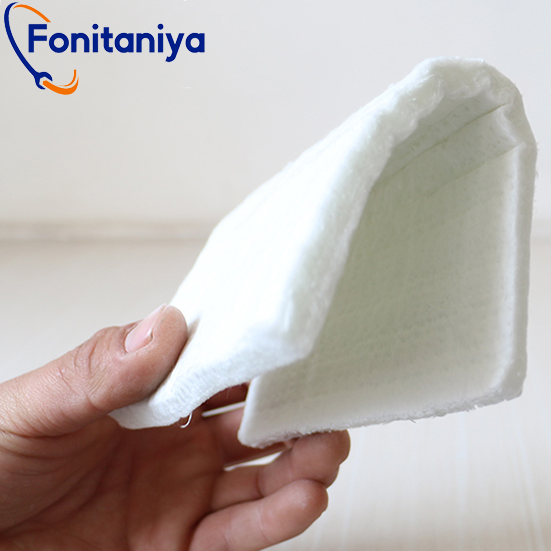

Silica Aerogel Blanket
- Exceptional Thermal Insulation: FON-10104 Provides superior thermal resistance with a conductivity of <0.025 W/m·K, suitable for high-temperature applications.
- Fire-Resistant: 950℃ long-term and 1500℃ short-term fireproof performance, ensuring safety in demanding environments.
- Lightweight and Flexible: Maintains structural integrity with densities around 200 kg/m³, enabling easy handling and installation.
- Waterproof and Corrosion-Resistant: Protects against moisture and corrosion, ideal for use in pipelines and industrial settings.
- Broad Application Range: Effective for insulating industrial pipes, storage tanks, automotive applications, and more.
| Brand | Fonitaniya |
|---|---|
| Serial Number | FON-10104 |
| Material | SiO2 Aerogel |
| Thermal Conductivity | <0.025 W/m·K |
| Maximum Temperature | 1500°C |
| Fire Rating | A-Level |
| Density | 200 kg/m³ |
| Thickness | 3mm, 5mm, 10mm |
| Color | White, Black |
| Waterproof | Yes |
| Corrosion Resistant | Yes |
| Flexibility | High |
| Applications | Industrial pipes, storage tanks, automotive, electronics |
| Manufacturing Compliance | ISO 22262-1:2012 |
Insulation Material Comparison Chart
| Material | Maximum Temperature | Fire Rating | Thermal Conductivity (W/m·K) | Waterproof | Density (kg/m³) |
|---|---|---|---|---|---|
| SiO2 Aerogel | 950°C | A | 0.020 | Yes | 200 |
| Ceramic Fiber | 1260°C | A | 0.062 | No | 500 |
| Carbon Fiber | 400°C | A | 0.050 | No | 100 |
| Glass Wool | 400°C | A | * | No | 150 |
| Rubber-Plastic | 100°C | B2 | 0.036 | Yes | 40 |

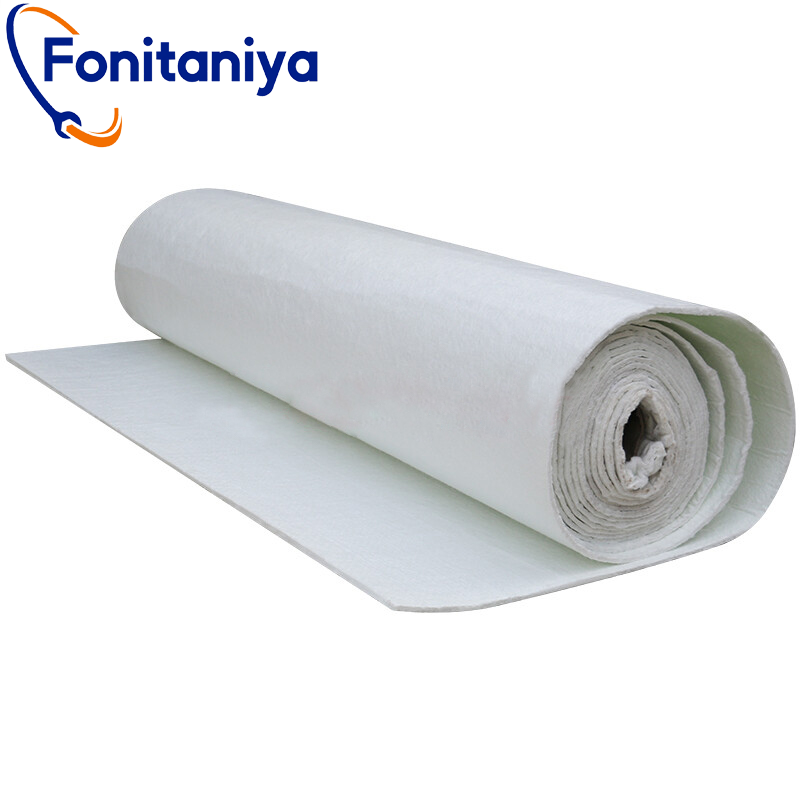

FON-10104 SiO2 Aerogel Blanket
The SiO2 Aerogel Insulation Blanket is crafted from a composite of silica aerogel and fiberglass, offering advanced thermal management solutions. Designed for industrial applications, it excels in insulating pipelines, storage tanks, and automotive components especially batteries.
With a thermal conductivity of less than 0.025 W/m·K and an A-level fire rating, this material provides robust and reliable performance, even in extreme temperatures up to 650°C. Its lightweight structure, with a density of 200 kg/m³, allows for easy installation and handling.
In addition to its thermal properties, the blanket is highly resistant to water and corrosion, ensuring durability in harsh environments. Its adaptable thicknesses meet diverse insulation requirements, making it an ideal choice for modern industrial needs.
Short Introduction to Aerogel
Aerogel is an ultralight, highly porous material primarily made from silica, known for its exceptional insulating properties. Its microstructure consists of a three-dimensional, open-cell lattice of interconnected nanoparticles, where over 95% of the volume is empty space. This nanoscale network forms numerous tiny pores, significantly limiting heat and sound transfer by reducing air molecule movement. As a result, aerogel combines the low density of a gas with the solid framework of a durable material, offering unparalleled thermal insulation and strength.
Application
- Industrial Pipelines: Provides efficient thermal insulation, reducing heat loss in transport systems.
- Storage Tanks: Maintains consistent temperatures for stored materials, improving energy efficiency.
- Electric Automotives: Insulates and protects temperature-sensitive parts such as batteries.
- Oil and Gas Lines: Insulates against extreme temperatures, ensuring safe and efficient operations.
If you want to customize tapes of other specifications, you can contact us to customize the specifications you want.
When can I get my quotation?
We will provide you with a detailed quotation as soon as we receive your inquiry. Typically, we will send you a quote within 24 hours. If your requirements are complex or need custom services, it might take a bit longer, but we will keep you informed of the progress promptly.
What is your order schedule?
After confirming your order, we will schedule production based on your requirements and our production plan. Generally, the production cycle for standard orders is 2-3 weeks. If you have an urgent order, please contact us as soon as possible. We will do our best to accommodate your request and arrange expedited production.
Can I get samples?
Yes, we are happy to provide samples for you. Please contact our sales team with your specific needs and sample type, and we will arrange for the samples to be sent to you as soon as possible. Some samples may require a small fee, but in most cases, we offer free samples for testing and evaluation.
Can I print my logo on the tape?
Absolutely. We offer customization services and can print your logo on the tape according to your requirements. Please provide a high-quality logo file and specific printing requirements. Our design team will create a draft design for your approval. We will also provide samples for you to confirm before production.
What if I don't have detailed requirements?
If you are unsure about the specific requirements, our technical team is more than happy to offer professional advice. Just tell us your application scenario and basic needs, and we will recommend the most suitable tape solution based on our extensive experience and wide range of products. We can also provide sample testing to ensure our products meet your needs.
