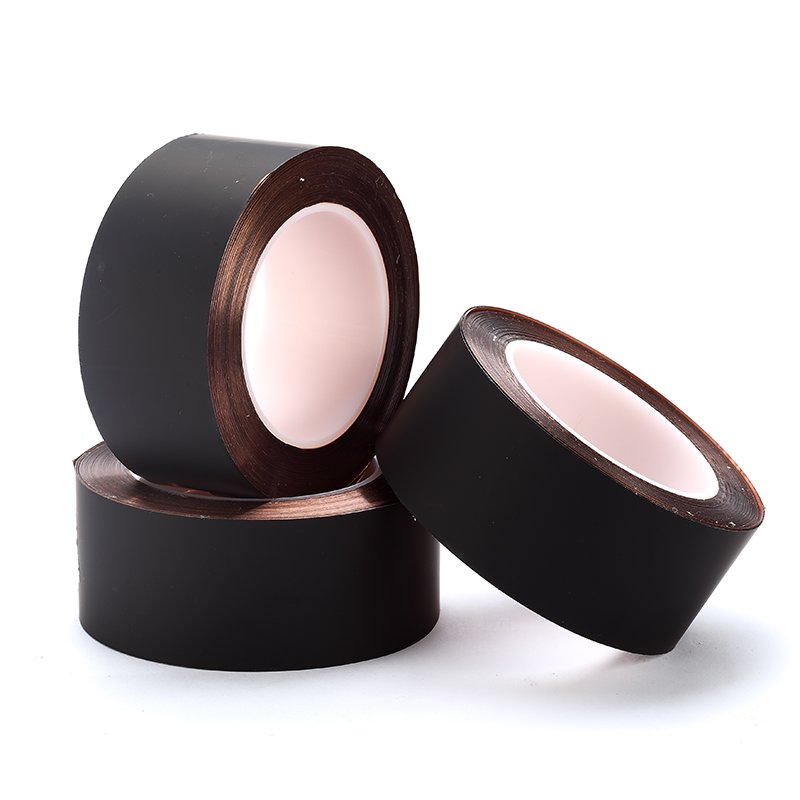

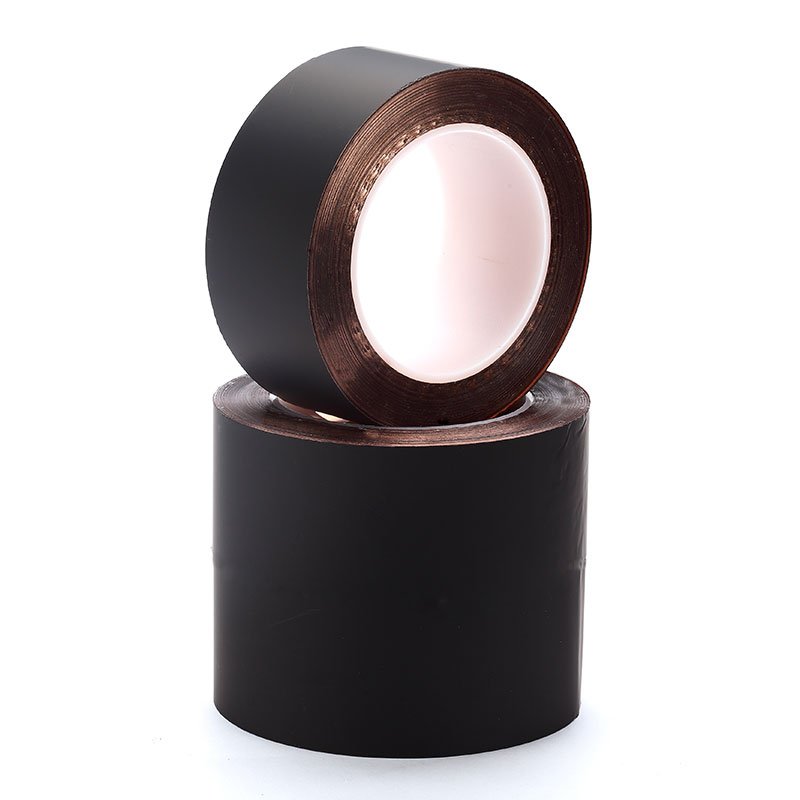

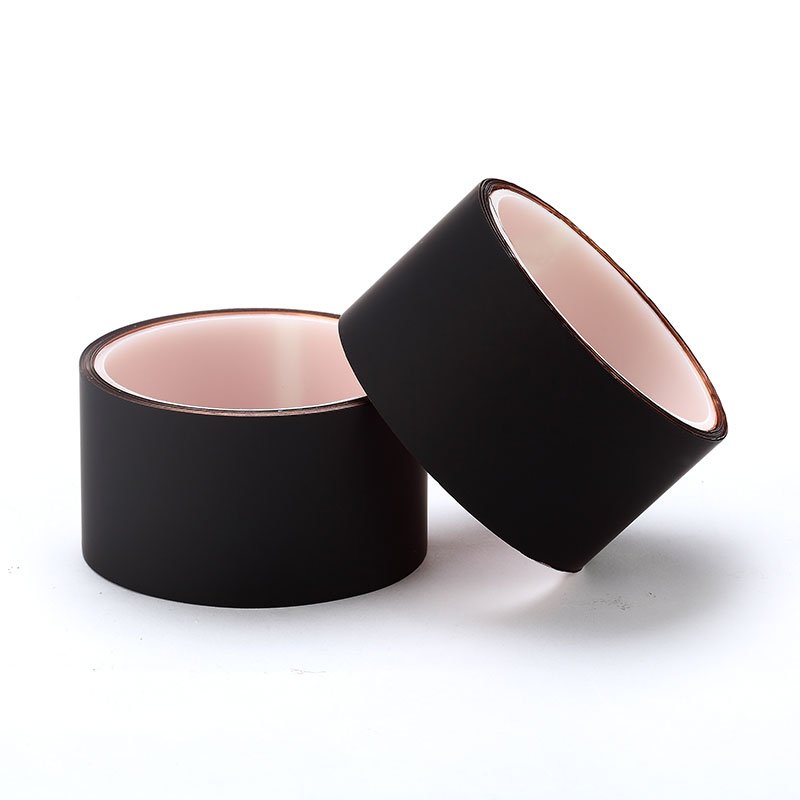

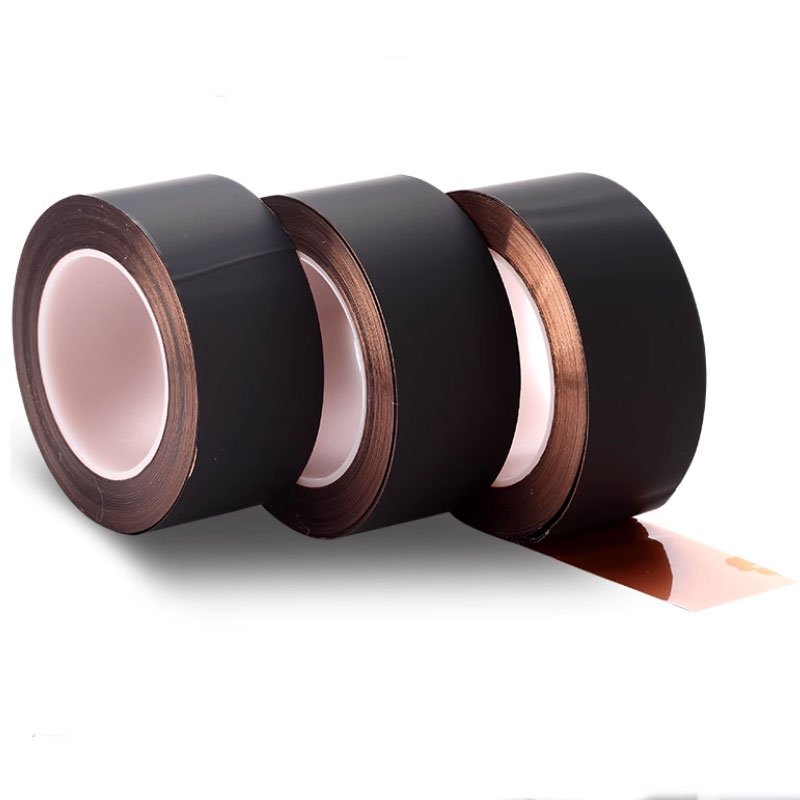

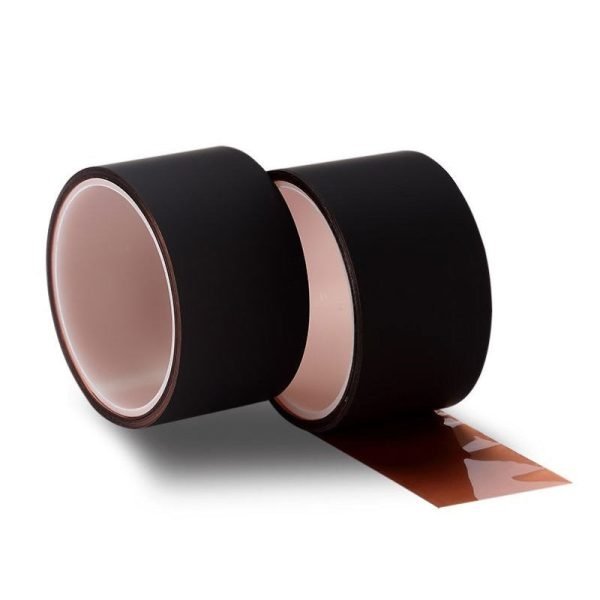

0.08mm Conductive Black Nano-carbon Copper Self-adhesive Tape
Quick Details
Origin: Guangdong, China
Adhesive surface: Single-sided
Color: Black (customizable)
Features: Copper foil conductivity/heat dissipation/anti-fingerprint/high temperature
Application:
Batteries, screens, etc.
Features:
The use of functional coatings to treat carbon aluminum foil/foil on the surface of battery conductive substrates involves uniformly and finely coating dispersed nano conductive graphite and carbon coated particles, which can provide excellent static conductivity, collect microcurrents of active materials, reduce contact resistance between positive/negative electrode materials and current collection direction, improve adhesion between the two, reduce the use of binders, and improve the overall performance of the battery. The coating has good water and oil separation properties. Surface coated heat dissipating nano coating has good heat dissipation, thermal conductivity, screen tapping performance, adhesion, bending resistance, and fingerprint resistance.
Technical parameters:
| Item | Unit | Standard Value | Inspect Basis |
|---|---|---|---|
| Material Thickness | mm | 0.04 | ASTMD-1000 |
| Total Thickness | mm | 0.08 | ASTMD-1000 |
| Adhesion Strength | gf/25mm | >800 | GB/T 2792-1998 |
| Usage Temperature | °C | -20~150 | – |
| Base Material Thermal Conductivity | W/mk | 400 | ASTMD5470 |
| Composite Material Thermal Conductivity | W/mk | 600~800 | ASTMD5470 |
| ROHS | – | PASS | SGS |

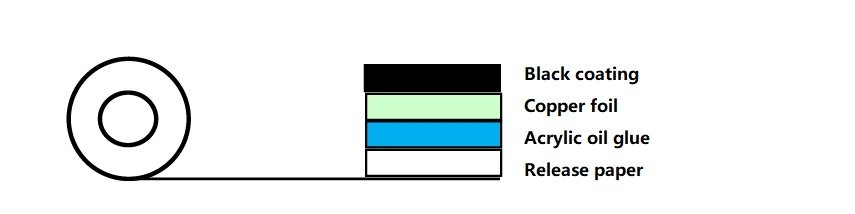

Product structure:
A. Materials used:
Base material: composite copper foil
Glue system: acrylic glue
B. Features, specifications, quality characteristics:
1. Model: HMCC040080B
2. Features: This tape has high viscosity, good heat dissipation effect, and good shielding performance.
C. Length*width: customizable
D. Storage conditions:
Store under normal conditions and avoid direct sunlight. It is best to store it in a storage environment of (25℃±5℃)×(60%±10%RH). It is recommended to use it within six months from the date of shipment for best results.
E. This product complies with the requirements of the EU RoHS Directive
If you want to customize tapes of other specifications, you can contact us to customize the specifications you want.
