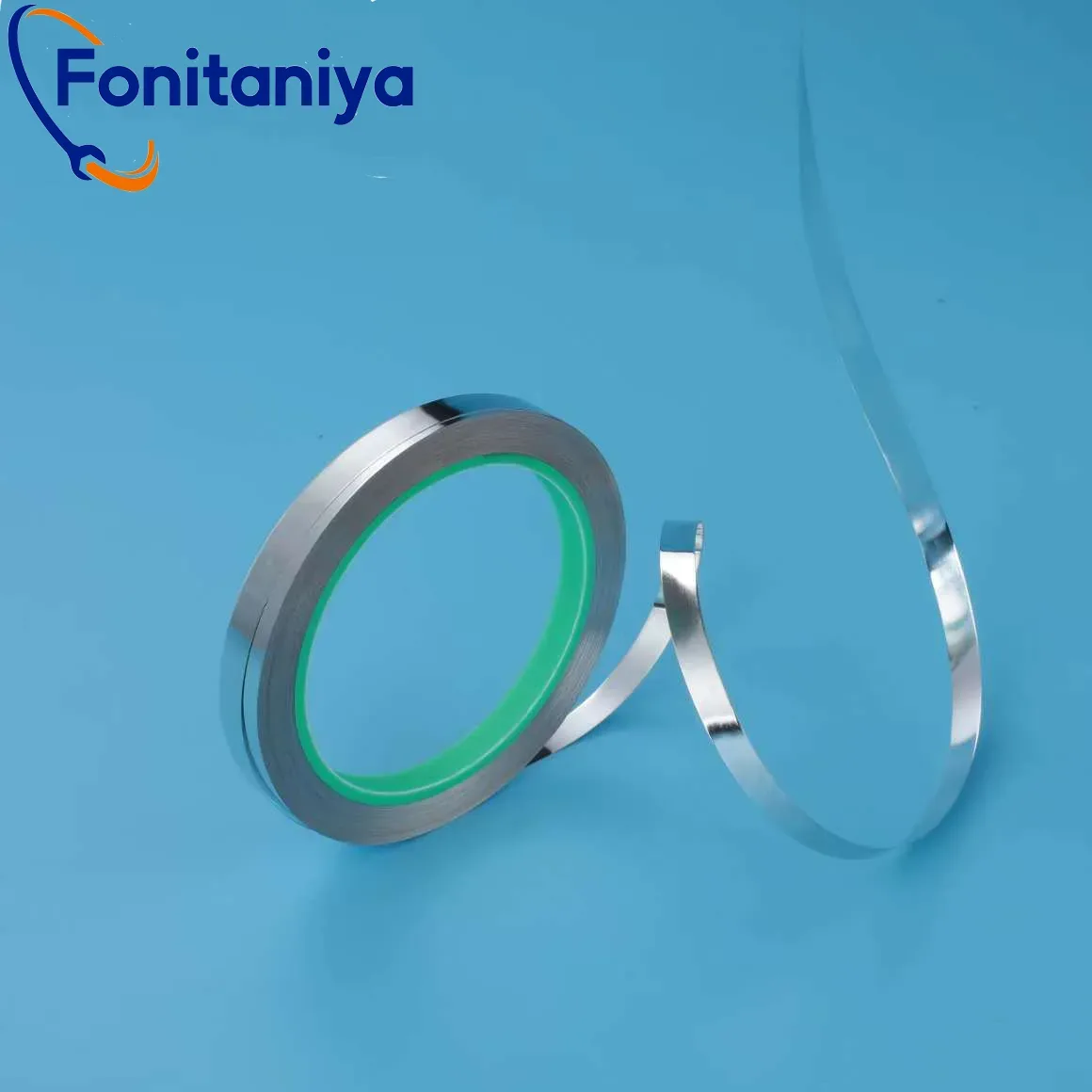

charge collection solar tape placed in blue back ground

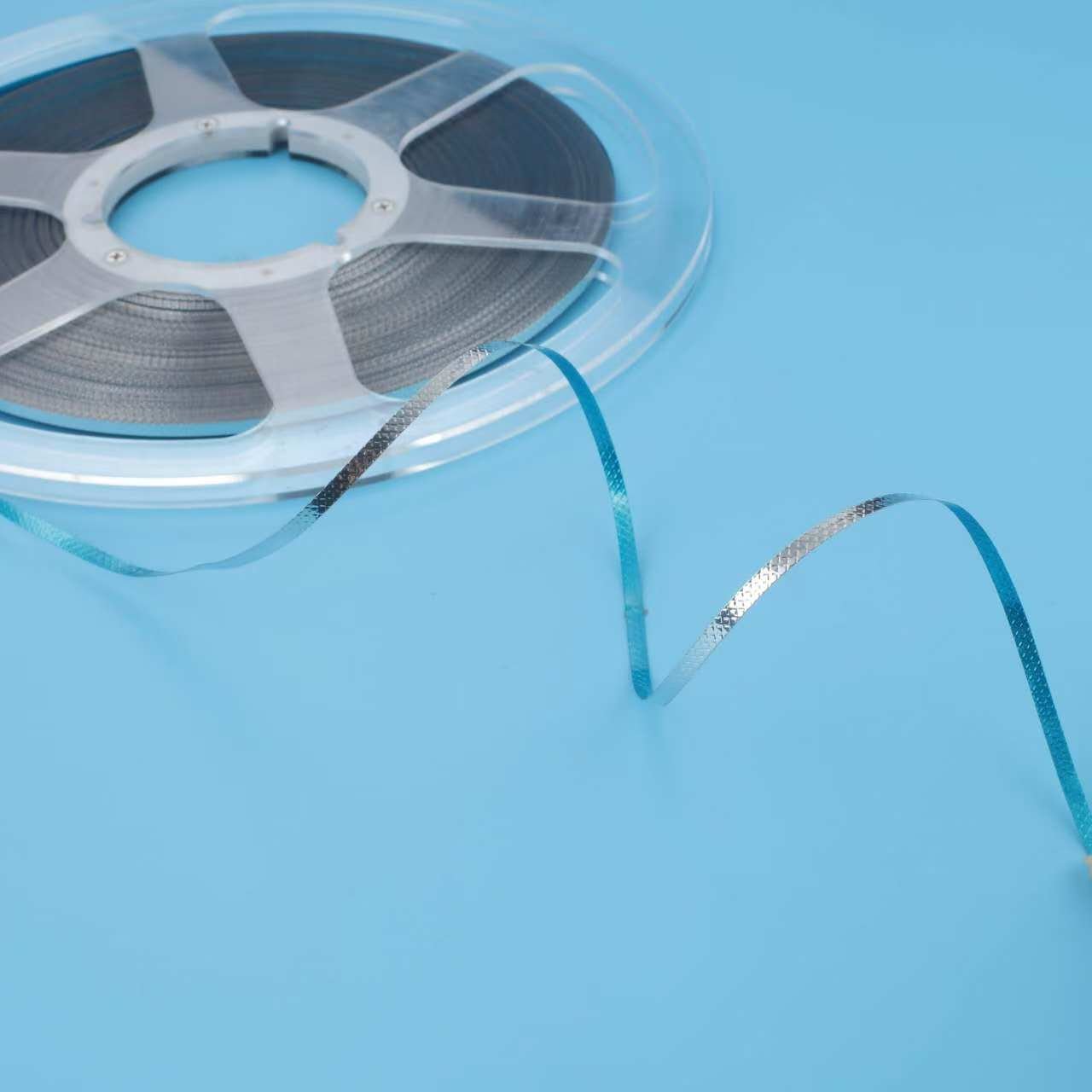

Charge Collection Solar Power Tape - Image 2

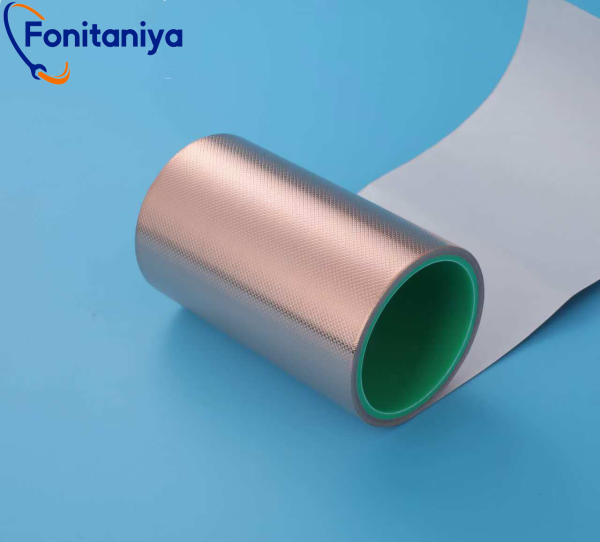

Charge Collection Solar Power Tape - Image 3

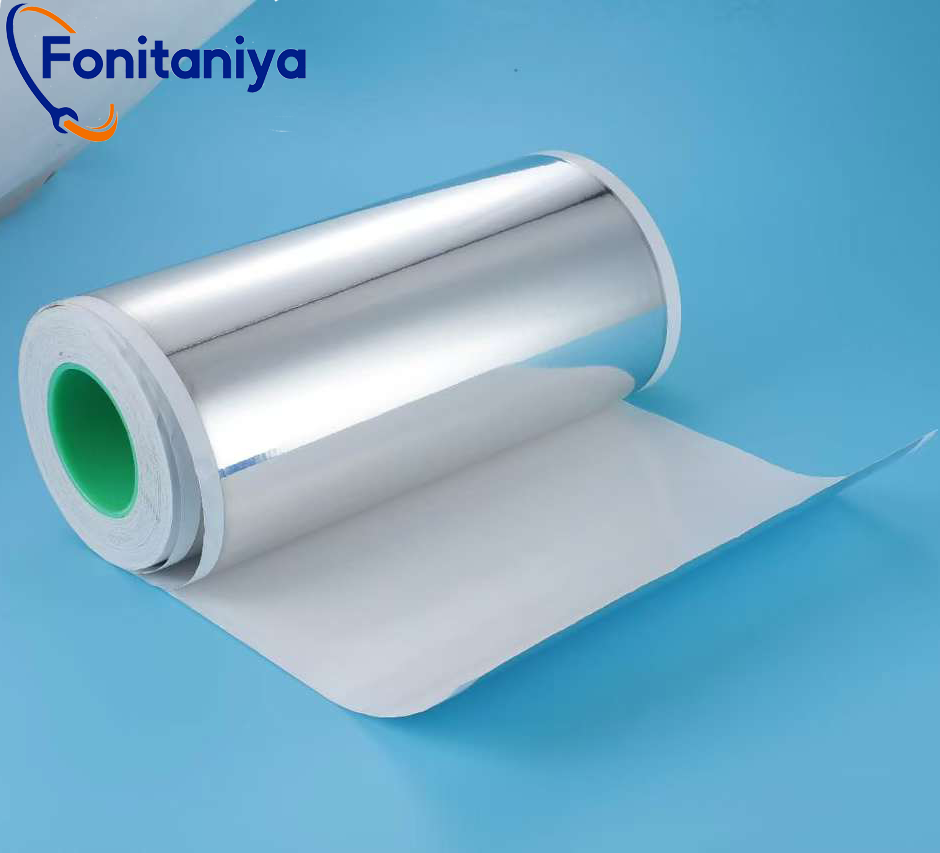

Charge Collection Solar Power Tape - Image 4

Charge Collection Solar Power Tape

  • Excellent Conductivity: Utilizes a tin-plated copper backing with conductive acrylic adhesive for superior electrical performance in solar panel applications.
  • Reliable Performance: Designed to maintain effective conductivity even after damp heat storage and electrical aging, ensuring longevity and reliability.
  • Strong Adhesion: Good initial adhesion and excellent shear resistance, ideal for various manufacturing processes in the solar industry.
  • Two Choices of Surface Available: Embossed surface and plain surface are both available.
  • High-Temperature Resistance: Capable of withstanding common lamination processes, with short-term temperature resistance up to 200°C, providing stability during standard manufacturing procedures.
Facebook Twitter Youtube Linkedin

Attributes to Charge Collection Solar Power Tape

Attribute Name Attribute Value
Brand Fonitaniya
Serial Number FON-10024
Backing Material Tin-Plated Copper
Adhesive Type Conductive Acrylic
Total Thickness 2.3 mil (0.058 mm)
Color Silver
Release Liner Transparent PET
Temperature Resistance Up to 200°C (short term)
Widths Available 4 mm, 6.35 mm, 194 mm
Length Available 66 m (216′)
Electrical Resistance < 0.002 ohm
Adhesion to Steel 7 N/cm (after 14 days)
Shelf Life 24 months
Application Fields Thin Film Solar Panels, EMI Shielding for Electronics
Surface Option Embossed Surface, Plain Surface

Fonitaniya Charge Collection Solar Power Tape

Fonitaniya™ Charge-Collection Solar Power Tape FON-10024 is a specialized adhesive tape designed for use in thin-film solar panels. Constructed with a 1-ounce tin-plated deadsoft copper foil backing and an electrically conductive pressure-sensitive adhesive, this tape serves as a charge collector or bus, facilitating efficient electrical transfer within solar modules. Its formulation allows it to endure the vacuum lamination process typically employed in solar panel production.

This tape boasts excellent XYZ conductivity and strong initial adhesion, ensuring reliable performance even after exposure to damp heat storage and electrical aging. Additionally, the high-temperature adhesive shear properties contribute to its durability under extreme conditions, making it suitable for various manufacturing processes. Available in standard and custom widths (ranging from 4 mm to 194 mm) and lengths (up to 66 m), Fonitaniya™ Charge-Collection Solar Power Tape is designed for quick application, allowing for high productivity without the need for curing, in contrast to liquid conductive adhesives.

Applications of Charge Collection Solar Power Tape

  • Charge Collection: Functions as an effective charge collector or bus in thin-film solar panels, enhancing electrical energy transfer.
  • Vacuum Lamination: Compatible with vacuum lamination processes in solar panel manufacturing for secure and efficient adhesion.
  • EMI Shielding: Serves as a shielding solution in electronic devices such as smartphones and tablets, protecting against electromagnetic interference.
  • Flexible Installation: Available in various widths and lengths, allowing for easy customization to fit different panel configurations and manufacturing processes.

If you want to customize tapes of other specifications, you can contact us to customize the specifications you want.

Custom tape
When can I get my quotation?

We will provide you with a detailed quotation as soon as we receive your inquiry. Typically, we will send you a quote within 24 hours. If your requirements are complex or need custom services, it might take a bit longer, but we will keep you informed of the progress promptly.

After confirming your order, we will schedule production based on your requirements and our production plan. Generally, the production cycle for standard orders is 2-3 weeks. If you have an urgent order, please contact us as soon as possible. We will do our best to accommodate your request and arrange expedited production.

Yes, we are happy to provide samples for you. Please contact our sales team with your specific needs and sample type, and we will arrange for the samples to be sent to you as soon as possible. Some samples may require a small fee, but in most cases, we offer free samples for testing and evaluation.

Absolutely. We offer customization services and can print your logo on the tape according to your requirements. Please provide a high-quality logo file and specific printing requirements. Our design team will create a draft design for your approval. We will also provide samples for you to confirm before production.

If you are unsure about the specific requirements, our technical team is more than happy to offer professional advice. Just tell us your application scenario and basic needs, and we will recommend the most suitable tape solution based on our extensive experience and wide range of products. We can also provide sample testing to ensure our products meet your needs.
