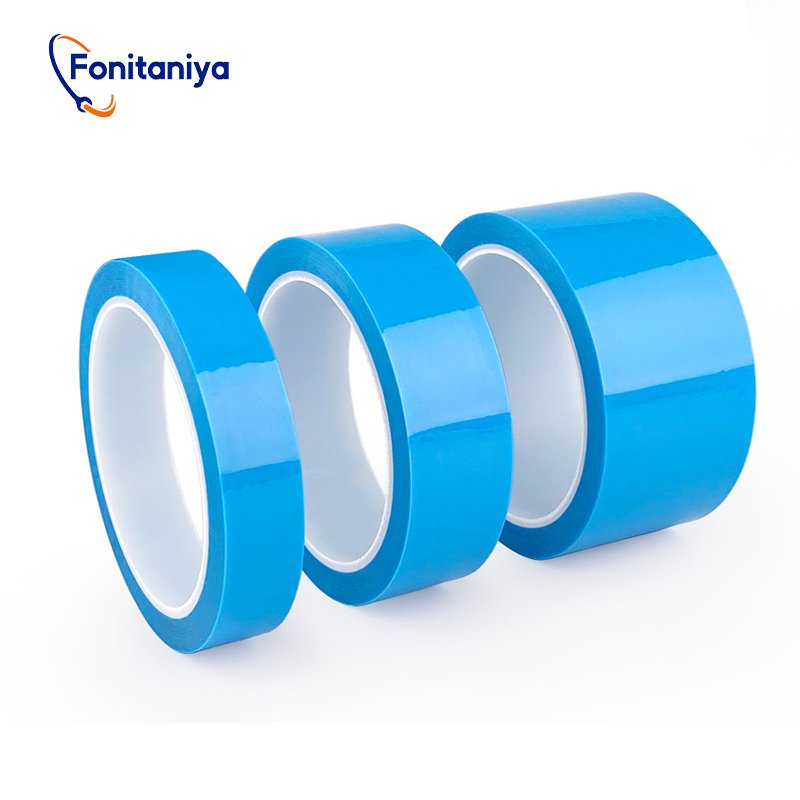

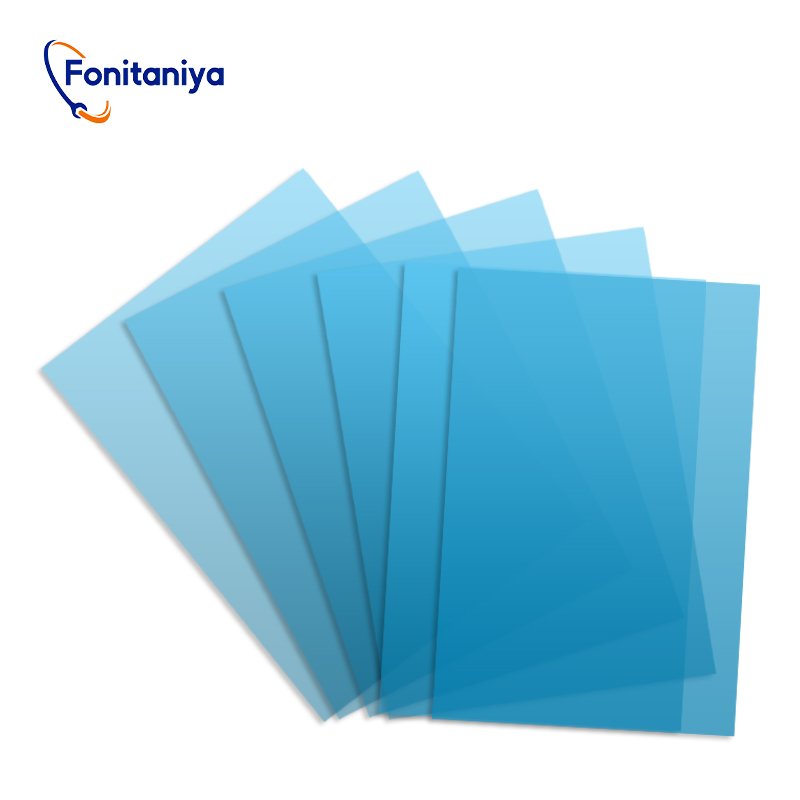

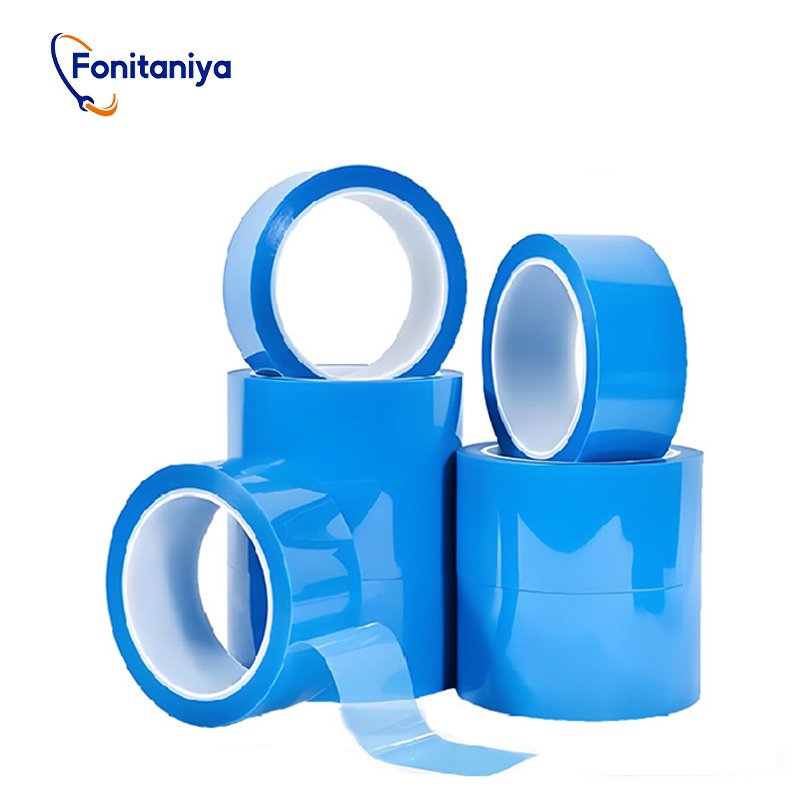

Electrical Release Tape
Effortless and Fast Application
Electrical release tape streamlines disassembly—no need for complex structures or rigid processes. Ideal for quick battery removal in smartphones, tablets, and automotive displays.
Enhanced Safety for Sensitive Devices
Electrical release tape enables smooth, damage-free disassembly—perfect for delicate electronics like OLED panels and medical sensors, minimizing risk during maintenance or repair.
Eco-Friendly and Reusable
Designed for repeated use, electrical release tape reduces waste and cost. Its reusability makes it a sustainable choice in green manufacturing and modular design.
Flawless Fit on Curved Surfaces
Unlike traditional easy-pull adhesives, electrical release tape adheres securely to complex or curved surfaces—essential for wearables, edge screens, and next-gen flexible devices.
1. Debonding Time Comparison (Under Different Voltages)
Tape Models: ZY150-A / ZY150-B / ZY150-J
Unit: seconds (s)
| Voltage (V) | ZY150-A | ZY150-B | ZY150-J |
|---|---|---|---|
| 6V | ~110 | ~100 | ~75 |
| 9V | ~75 | ~65 | ~50 |
| 15V | ~50 | ~40 | ~25 |
| 20V | ~25 | ~20 | ~15 |
2. Peel Strength Test (High Temperature 80℃ for 30 minutes)
Model: ZY150-B
-
No exact values provided, but described as performing well.
3. Drop Resistance Test (ZY150-B)
-
Ball Drop Test: Passed 5 tests at >1.5 meters
-
Drum Drop Test: Passed 500 + 300 drops successfully
4. Holding Power Test (ZY150-B)
-
Weight Hanging Test: 1kg load held at room temperature for 120 hours without failure
5. Waterproof Performance Test (ZY150-B)
-
Immersed in 1-meter-deep water for 30 minutes; 5 test samples passed with no visible discoloration
Introduction
Electrical release tape is a cutting-edge solution developed for safe, efficient, and damage-free disassembly in precision electronics. Manufactured by Fonitaniya™, a trusted name with over 15 years of adhesive innovation, this tape features a specially engineered structure—typically combining aluminum and PET films with a proprietary acrylic adhesive infused with conductive lithium salts. It’s widely used in smartphones, tablets, automotive displays, and wearable tech, where clean, residue-free removal is essential. Activated by low-voltage current, electrical release tape breaks adhesion through controlled electrochemical reactions, ensuring devices can be serviced or recycled with ease. Its key strengths include fast release without structural dependency, repeatable usability, and strong adhesion to curved or irregular surfaces. Compared to traditional easy-pull or thermal tapes, it offers superior performance in both high-temperature and high-humidity environments. Fonitaniya’s formulation also incorporates anti-corrosion agents to protect sensitive components, making it a reliable choice for next-gen electronics.
How to Use
Usage Procedure of Electrical Release Tape
-
Connect Electrodes: Attach the positive terminal to the tape’s aluminum layer and the negative to the bonded surface.
-
Set Voltage: Apply 10–20V using a controlled power source.
-
Activate Debonding: Power on for about 90 seconds. Once the current stabilizes, the tape is ready for removal.
-
Peel Off Promptly: Remove the tape soon after powering off to ensure optimal release performance.
Caution Matters
-
Avoid Air Bubbles: Ensure full surface contact during bonding; trapped air can disrupt conductivity and lead to failed separation.
-
Prevent Short Circuits: Use precision tools during die-cutting to avoid damaging the aluminum foil, which may expose sharp edges.
-
Limit Reuse: For best adhesion, do not exceed three usage cycles. Repeated ion migration may reduce bonding reliability.
-
Surface Compatibility: Ensure surfaces are clean and dry before application for consistent performance.
If you want to customize tapes of other specifications, you can contact us to customize the specifications you want.
