Attributes to the ESD Polyimide Tape
| Attribute | Value |
|---|---|
| Brand | Fonitaniya |
| Serial Number | FON-10051 |
| Color | Dark Brown (Amber) |
| Base Material | Polyimide Film |
| Adhesive Type | Silicone |
| Substrate Thickness | 0.025mm (0.00098 in), 0.05mm (0.00197 in) |
| Total Thickness | 0.06mm (0.00236 in), 0.08mm (0.00315 in) |
| Peel Strength | ≥ 5 N/inch |
| Tensile Strength | ≥ 100 N/inch, ≥ 200 N/inch |
| Elongation at Break | ≥ 45%, ≥ 55% |
| Voltage Resistance | 5 KV, 7 KV |
| Back Anti-Static Index | 10⁶ to 10¹⁰ Ω |
| Temperature Range | -73°C to 260°C (-99°F to 500°F) |

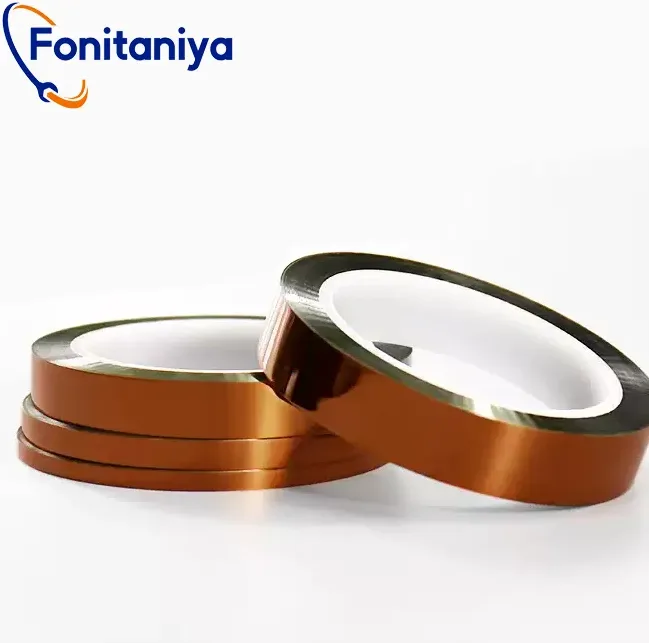

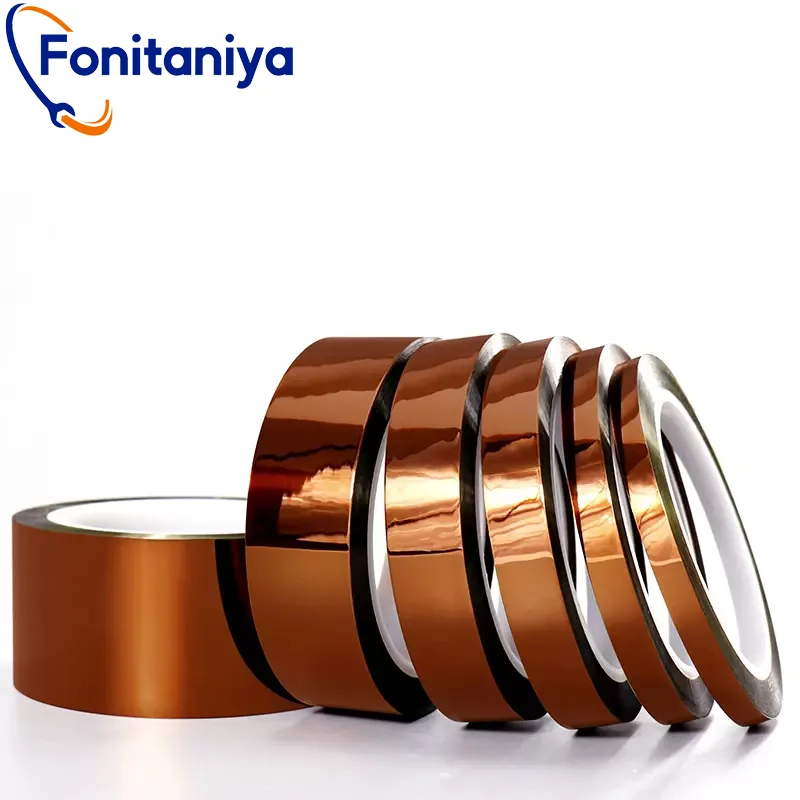

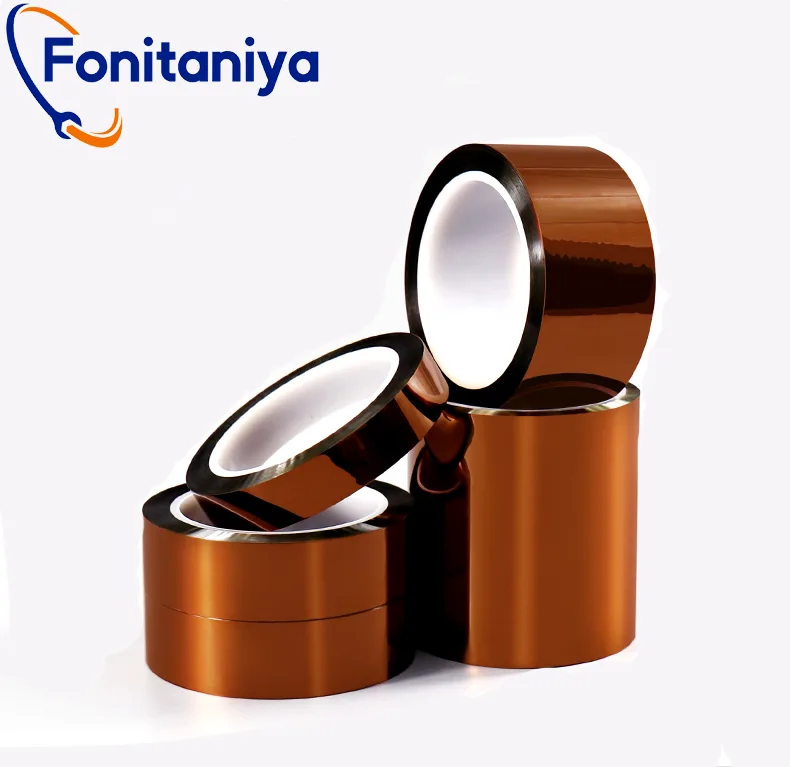

Product Description of ESD Kapton Tape
Fonitaniya’s ESD Antistatic Kapton tape is a high-temperature polyimide tape designed with an anti-static coating on the surface and silicone pressure-sensitive adhesive on the reverse side. This specialized tape ensures low static generation during application, significantly reducing the risk of damage to sensitive electronic components. With a temperature resistance range extending from -73°C to 260°C, it is ideal for demanding industrial environments.
Common applications include insulation wrapping for electronic industry components such as transformers, motors, and coils, as well as high-end electrical insulation protection in lithium battery manufacturing. The tape’s ability to maintain strong insulation and cleanly remove without leaving residue makes it highly suitable for use in SMT tin furnaces and PCB board solder masking.

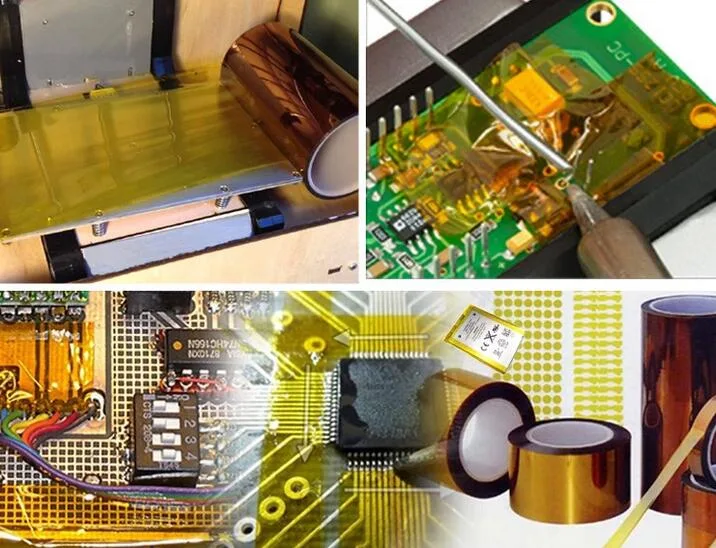

Antistatic Polyimide Tape Application
Ideal for PCB protection, electronic insulation, and high-temperature industrial use.
If you want to customize tapes of other specifications, you can contact us to customize the specifications you want.
When can I get my quotation?
We will provide you with a detailed quotation as soon as we receive your inquiry. Typically, we will send you a quote within 24 hours. If your requirements are complex or need custom services, it might take a bit longer, but we will keep you informed of the progress promptly.
What is your order schedule?
After confirming your order, we will schedule production based on your requirements and our production plan. Generally, the production cycle for standard orders is 2-3 weeks. If you have an urgent order, please contact us as soon as possible. We will do our best to accommodate your request and arrange expedited production.
Can I get samples?
Yes, we are happy to provide samples for you. Please contact our sales team with your specific needs and sample type, and we will arrange for the samples to be sent to you as soon as possible. Some samples may require a small fee, but in most cases, we offer free samples for testing and evaluation.
Can I print my logo on the tape?
Absolutely. We offer customization services and can print your logo on the tape according to your requirements. Please provide a high-quality logo file and specific printing requirements. Our design team will create a draft design for your approval. We will also provide samples for you to confirm before production.
What if I don't have detailed requirements?
If you are unsure about the specific requirements, our technical team is more than happy to offer professional advice. Just tell us your application scenario and basic needs, and we will recommend the most suitable tape solution based on our extensive experience and wide range of products. We can also provide sample testing to ensure our products meet your needs.
