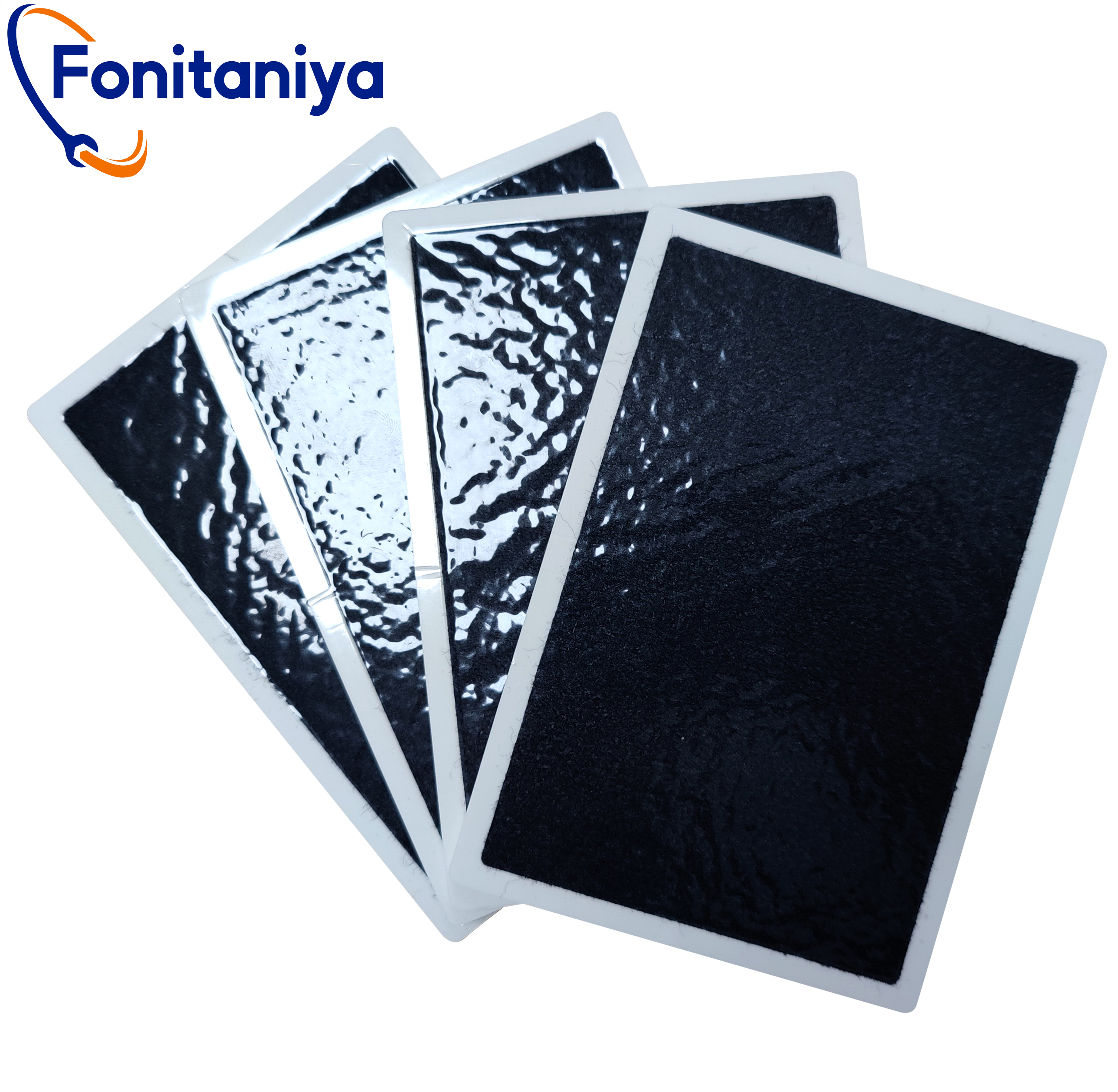

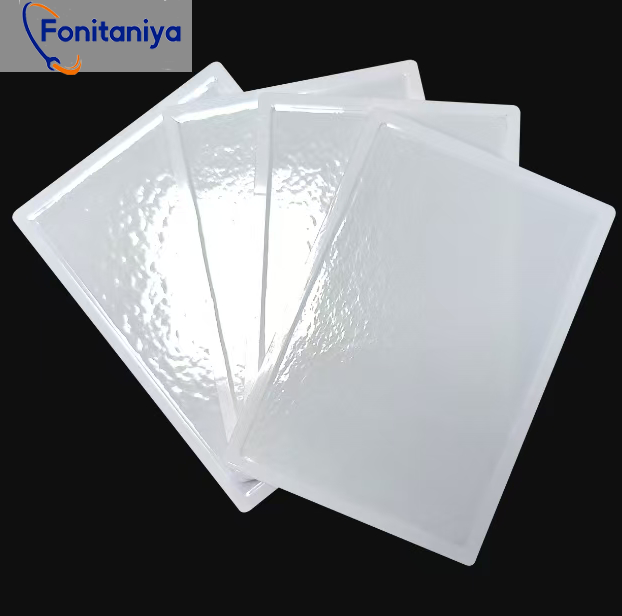

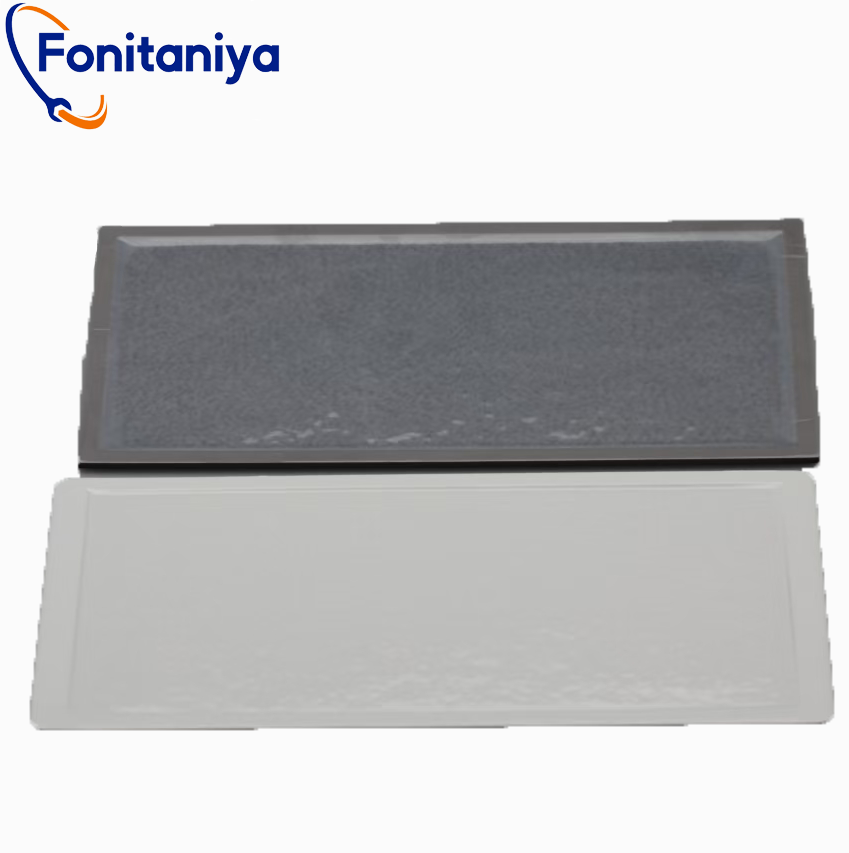

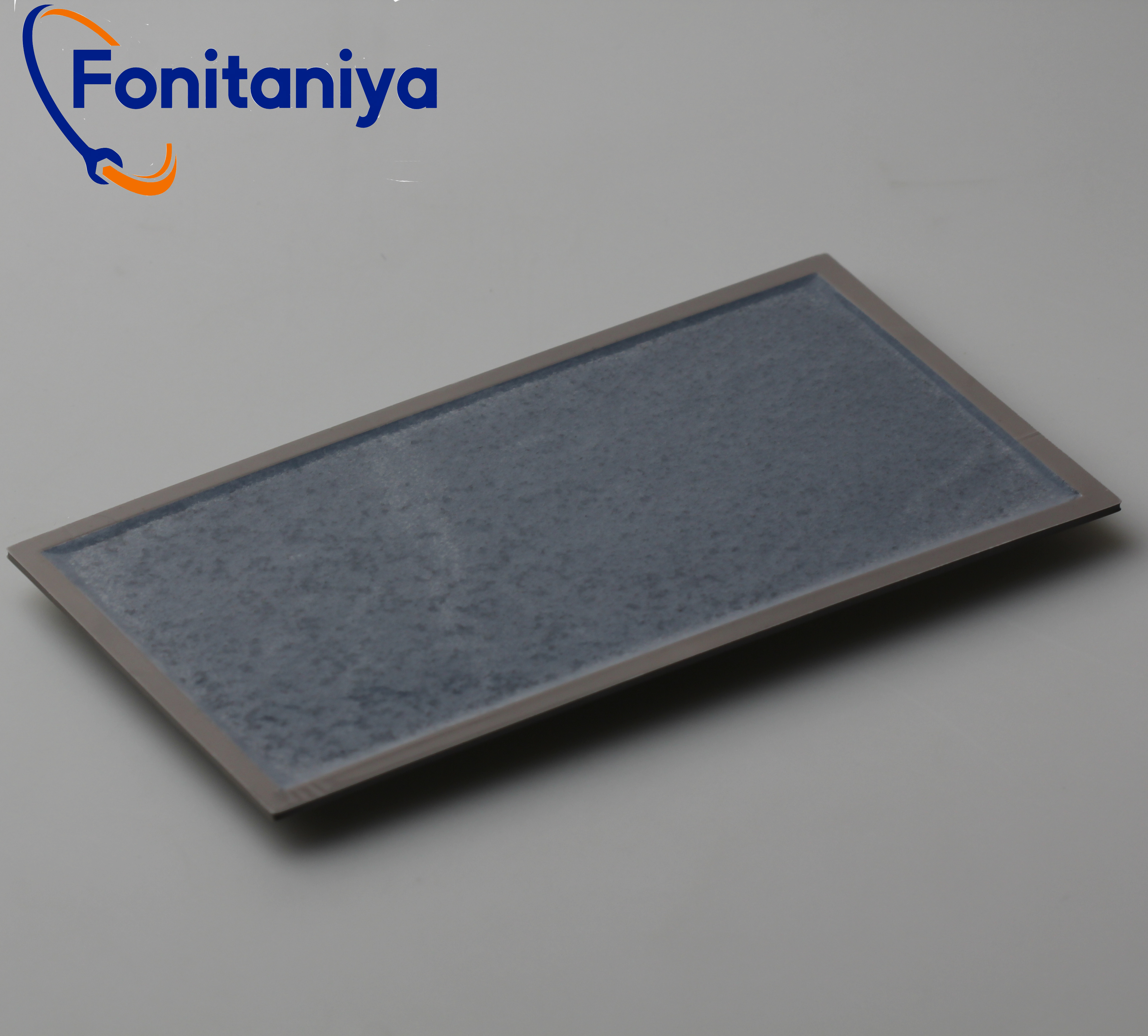

Silica Aerogel Insulation Padding for EV Batter Cells
- Ultra-thin silica aerogel core with molded silicone/PET exterior for enhanced durability.
- Excellent thermal insulation to prevent heat runaway between EV battery cells.
- Acts as a cushion to absorb vibration and impacts, protecting battery stability.
- Offers superior electrical insulation for enhanced safety.
Attributes to the FON 10107 Aerogel Padding for EVs
| Attribute | Description |
|---|---|
| Brand | Fonitaniya |
| Serial Number | FON 10107 |
| Product Type | Silica Aerogel Insulation Padding |
| Material | Ultra-thin silica aerogel with PET/PI film composite |
| Primary Use | Thermal insulation and safety padding between EV battery cells |
| Thermal Conductivity | ≤0.035 W/m·K (at 25°C) |
| Flammability Rating | V0 (as per UL94-2013) |
| Color Options | White / Black |
| Thickness | 0.5 – 6 mm |
| Density | 350 – 672 kg/m³ |
| Standards | CE, GB/T5480-2008, GB/T10295-2008, UL94-2013, RoHS, REACH, ELV |
| Environmental Compliance | RoHS, REACH, ELV |
Silica Aerogel Padding for Insulation in EV batteries

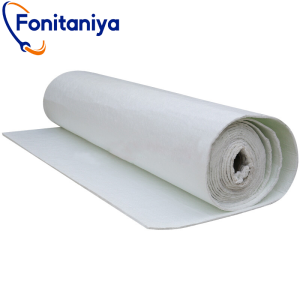

This insulation padding is made of a silica aerogel blanket on the inside, encased in a molded silicone/PET exterior. The advanced material combination ensures excellent heat resistance, high durability, and electrical insulation. The product is specifically designed to be placed between EV battery cells to prevent thermal runaway and ensure safety.
The primary use of this aerogel insulation is to control heat within EV battery packs, effectively isolating cells to prevent overheating. It also provides electrical insulation and acts as a shock absorber, enhancing the reliability of the entire battery module.
Application
If you want to customize tapes of other specifications, you can contact us to customize the specifications you want.
When can I get my quotation?
We will provide you with a detailed quotation as soon as we receive your inquiry. Typically, we will send you a quote within 24 hours. If your requirements are complex or need custom services, it might take a bit longer, but we will keep you informed of the progress promptly.
What is your order schedule?
After confirming your order, we will schedule production based on your requirements and our production plan. Generally, the production cycle for standard orders is 2-3 weeks. If you have an urgent order, please contact us as soon as possible. We will do our best to accommodate your request and arrange expedited production.
Can I get samples?
Yes, we are happy to provide samples for you. Please contact our sales team with your specific needs and sample type, and we will arrange for the samples to be sent to you as soon as possible. Some samples may require a small fee, but in most cases, we offer free samples for testing and evaluation.
Can I print my logo on the tape?
Absolutely. We offer customization services and can print your logo on the tape according to your requirements. Please provide a high-quality logo file and specific printing requirements. Our design team will create a draft design for your approval. We will also provide samples for you to confirm before production.
What if I don't have detailed requirements?
If you are unsure about the specific requirements, our technical team is more than happy to offer professional advice. Just tell us your application scenario and basic needs, and we will recommend the most suitable tape solution based on our extensive experience and wide range of products. We can also provide sample testing to ensure our products meet your needs.
