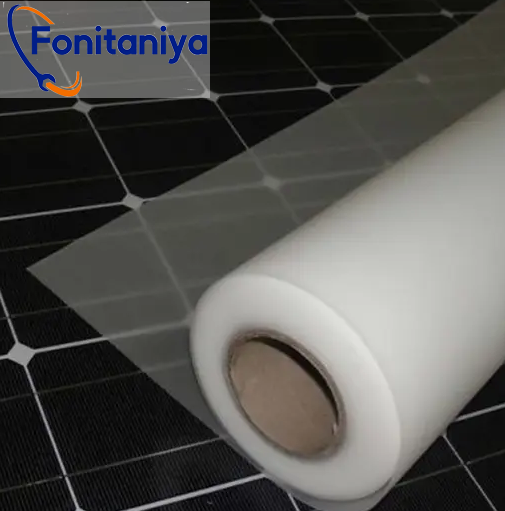

Solar Encapsulant Film Fon-10027
- Superior UV Protection: Specifically formulated to enhance UV resistance, safeguarding the integrity of solar modules over extended periods.
- Minimal Water Absorption: Maintains low water absorption rates, critical for preventing moisture-related issues in solar applications.
- Optimized Manufacturing Process: Designed for efficient lamination, this film simplifies production while ensuring high-quality outcomes.
- Longevity and Reliability: Built to endure harsh environmental conditions, extending the operational life of solar energy systems.
| Brand | Fonitaniya |
|---|---|
| Serial Number | Fon-10027 |
| Type | Ethylene Vinyl Acetate (EVA) |
| Thickness (Uncured) | 0.4 – 0.65 mm |
| Density (Uncured) | 0.92 g/cm³ |
| Tensile (Cured) | MD: 18 MPa / TD: 16 MPa |
| Elongation (Cured) | MD: 960% / TD: 810% |
| Adhesion to Glass | 100 N/cm |
| Water Absorption (Cured) | 0.12% |
| Electrical Volume Resistivity (Cured) | 1.1 × 10^15 Ω·cm |
| Optical Transmittance (Cured) | 91% |
| UV Cut Off (Cured) | 390 nm |
| Damp Heat Resistance (85% RH, 85°C, 1000h) | Δb* 0.6, ΔT% 1.5 |
| Features | Enhances UV stability |
| Shelf Life | 6 months |
| Recommended Lamination Conditions | Temp: 145-155°C, Press: 8-13 min, Evacuation: 3-5 min |
Solar Power Tape: Encapsulant Film Fon-10027
The Solar Encapsulant Film Fon-10027 is designed for encapsulating solar cells in photovoltaic (PV) modules, providing essential UV protection and low water absorption. Made from Ethylene Vinyl Acetate (EVA), this film effectively safeguards solar components against environmental damage, ensuring dependable performance across various installations.
Fon-10027 offers superior adhesion to glass and backsheet materials, contributing to the durability and stability of solar modules. It is engineered for compatibility with existing lamination processes, allowing for seamless integration into production lines. Key features include high light transmission, excellent damp-heat stability, and minimal shrinkage, enhancing overall module efficiency.
Application
The Solar Encapsulant Film Fon-10027 is applied during the lamination process of photovoltaic (PV) modules, encapsulating solar cells to protect them from environmental damage. It ensures strong adhesion to glass and backsheet materials, enhancing the durability and performance of solar panels in various installations.
If you want to customize tapes of other specifications, you can contact us to customize the specifications you want.
When can I get my quotation?
We will provide you with a detailed quotation as soon as we receive your inquiry. Typically, we will send you a quote within 24 hours. If your requirements are complex or need custom services, it might take a bit longer, but we will keep you informed of the progress promptly.
What is your order schedule?
After confirming your order, we will schedule production based on your requirements and our production plan. Generally, the production cycle for standard orders is 2-3 weeks. If you have an urgent order, please contact us as soon as possible. We will do our best to accommodate your request and arrange expedited production.
Can I get samples?
Yes, we are happy to provide samples for you. Please contact our sales team with your specific needs and sample type, and we will arrange for the samples to be sent to you as soon as possible. Some samples may require a small fee, but in most cases, we offer free samples for testing and evaluation.
Can I print my logo on the tape?
Absolutely. We offer customization services and can print your logo on the tape according to your requirements. Please provide a high-quality logo file and specific printing requirements. Our design team will create a draft design for your approval. We will also provide samples for you to confirm before production.
What if I don't have detailed requirements?
If you are unsure about the specific requirements, our technical team is more than happy to offer professional advice. Just tell us your application scenario and basic needs, and we will recommend the most suitable tape solution based on our extensive experience and wide range of products. We can also provide sample testing to ensure our products meet your needs.
