Thermally Conductive Wave Absorber
- High-frequency wave absorption and thermal conductivity (2.0–3.0 W/m·K).
- Flexible, ultra-thin, and customizable for any shape or application.
- Reduces cavity resonance, PCB radiation, and heatsink interference.
- Operates in extreme temperatures and ensures reliable thermal management.
Attributes of High Frequency Absorbing Thermal Pad
| Attribute | Value |
|---|---|
| Brand | Fonitaniya |
| Serial Number | FON-10116 |
| Thermal Conductivity | 2.0 W/m·K (ABSM-2000), 3.0 W/m·K (ABSM-3000) |
| Frequency Range | 500 MHz to 6 GHz |
| Operating Temperature | -50°C to 160°C (ABSM-2000), -50°C to 150°C (ABSM-3000) |
| Thickness Range | 0.5–5.0 mm |
| Density | 4.4 g/cm³ (ABSM-2000), 4.2 g/cm³ (ABSM-3000) |
| Hardness | Shore 00: 62 (ABSM-2000), 61 (ABSM-3000) |
| Flame Resistance | 94V-0 |
| Applications | Small cells, massive MIMO, routers, smartphones, and computing devices |
Wave-absorbing Thermal Compound
The FON=10116 Wave-Absorbing Thermal Sheet is a dual-function material engineered for electromagnetic wave absorption and thermal management. Designed to operate efficiently within 500 MHz to 6 GHz frequency ranges, this sheet significantly reduces cavity resonance effects, PCB radiation, and heatsink interference in 5G systems and electronic devices. With a thermal conductivity of 2.0 W/m·K (ABSM-2000) and 3.0 W/m·K (ABSM-3000), it ensures optimal heat transfer between heat sources and thermal modules, preventing overheating and improving device performance.
This versatile sheet is self-adhesive, compressible, and ultra-flexible, allowing it to conform to various topographies and fill irregular gaps. Its flame resistance (94V-0) and operational temperature range (-50°C to 160°C) make it ideal for small cells, massive MIMO, routers, smartphones, and computing devices. Whether used for EMI shielding or heat dissipation, the Fonitaniya Wave-Absorbing Thermal Sheet is a reliable and efficient solution for modern electronic systems.
Application
Ideal for telecommunication systems, routers, and electronic devices requiring high thermal conductivity and EMI shielding.

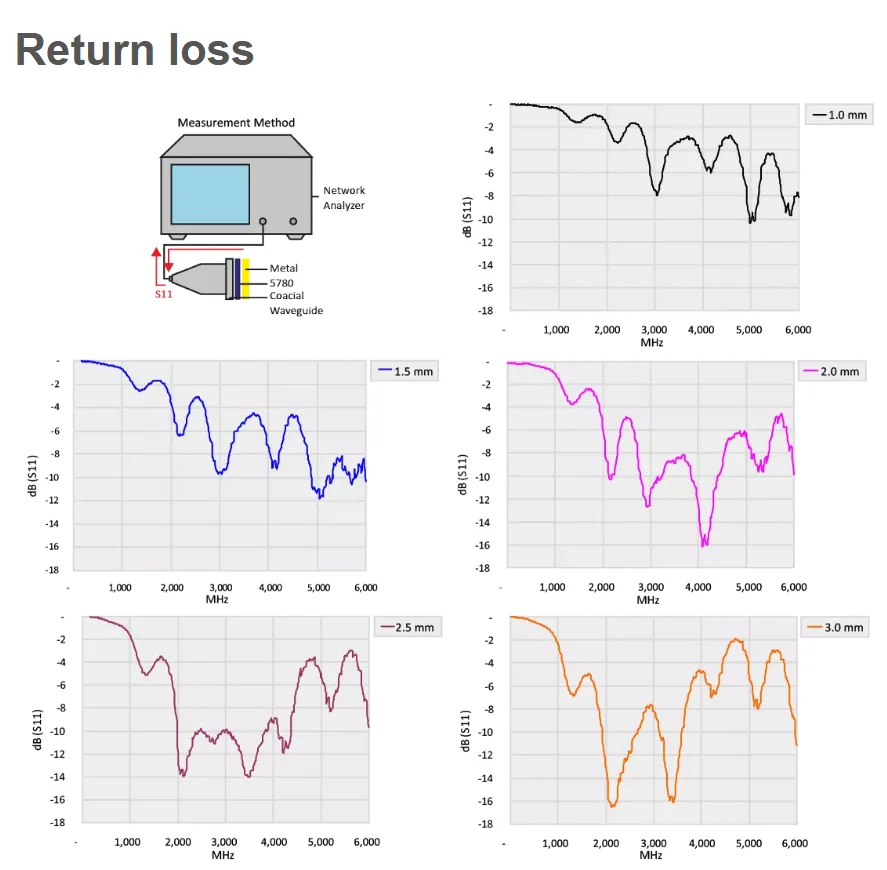

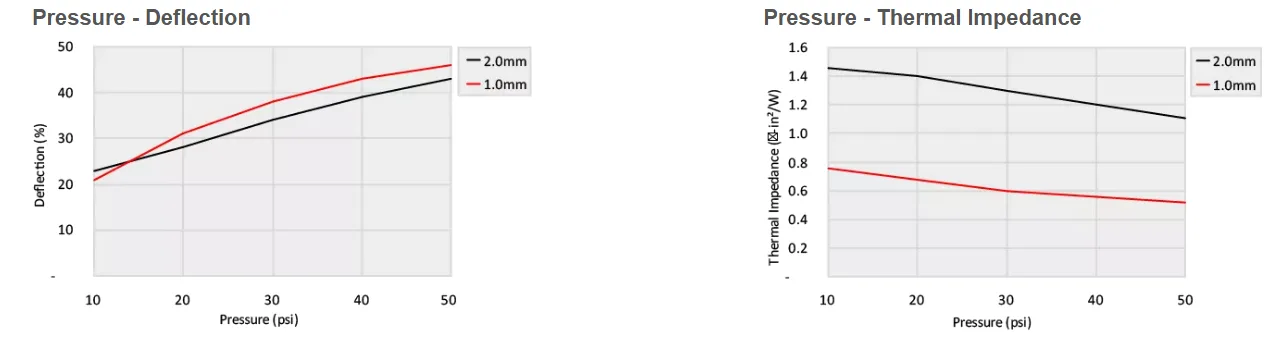

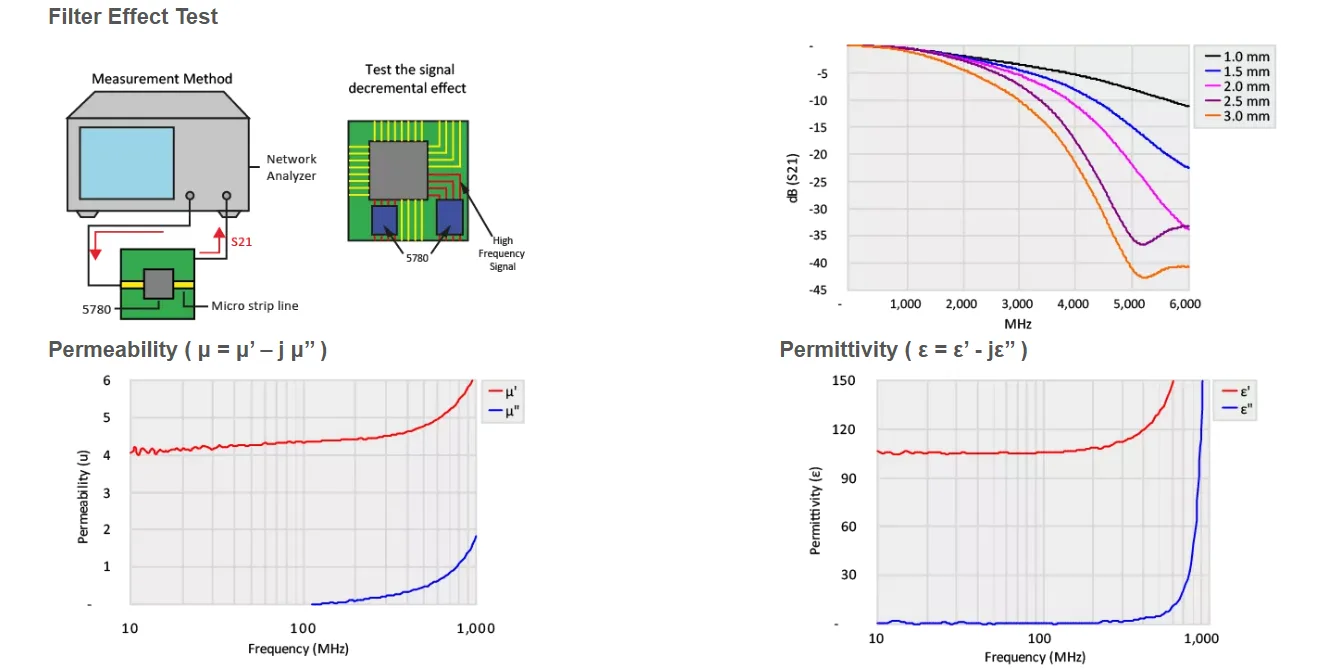

Testing Results
If you want to customize tapes of other specifications, you can contact us to customize the specifications you want.
