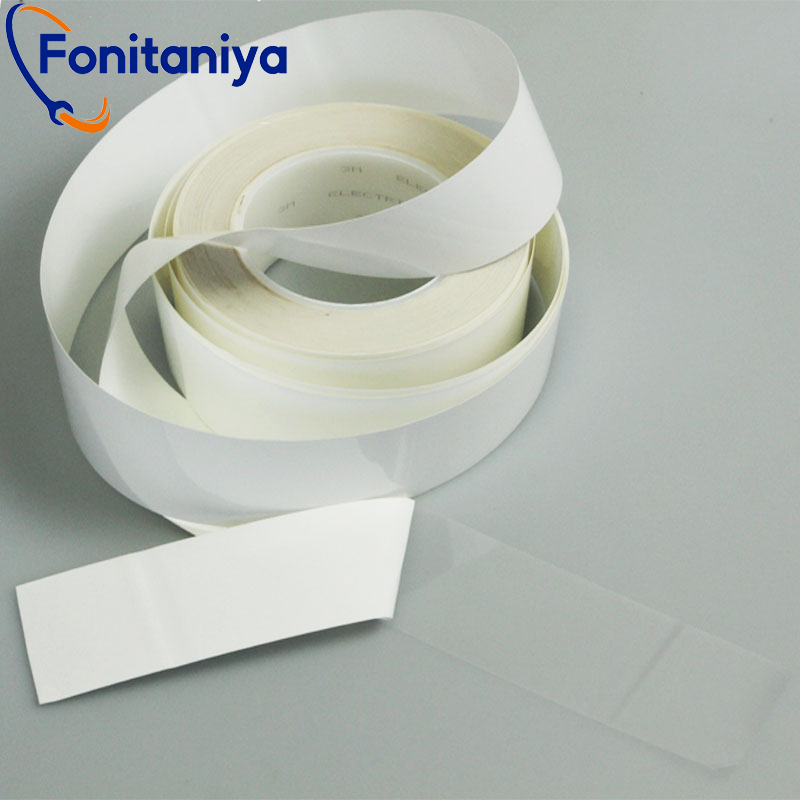

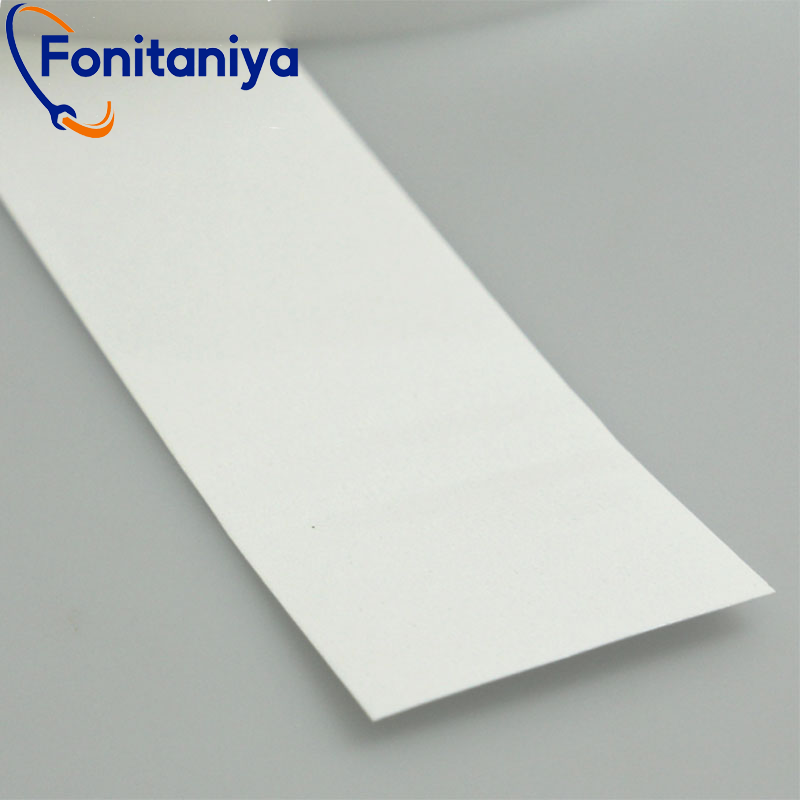

Ceramic Aerogel Insulation Film
- Perfect for EV batteries and aerospace application.
- High thermal insulation effectiveness with low thermal conductivity across a broad temperature range.
- Excellent fire resistance and V0 combustion rating for enhanced safety.
- High water repellency and asbestos-free composition for environmental safety.
- Extensive compliance with RoHS, REACH, and ELV for quality assurance.
Ceramic Aerogel Insulation Film
| Attribute | Details |
|---|---|
| Brand | Fonitaniya |
| Thickness | 10-1000μm |
| Width | 1500 ± 20mm (customizable) |
| Serial Number | FON-10101 |
| Max Usage Temp | 650°C |
| Density | 260 ± 20kg/m³ |
| Thermal Conductivity | 25°C: ≤0.023 W/m·K, 100°C: ≤0.03 W/m·K, 300°C: ≤0.04 W/m·K, 600°C: ≤0.072 W/m·K |
| Combustion Grade | A1 (GB/T 8624-2012), V0 (UL 94-2013) |
| Water Repellency | ≥98% |
| Asbestos | None |
| RoHS Compliance | Meets EU RoHS directive requirements |
| REACH Compliance | ≤0.1% (w/w) SVHC |
| ELV Compliance | Meets automotive material requirements |
| Fire Resistance | 2mm: >60 min |
| Insulation Temperature | 2mm: Min≥390°C; 3mm: Min≥450°C |
| Applications | Electronic vehicles, power batteries, thermal insulation, combustion prevention, noise reduction, control of electromagnetic interference |
FON-10101 Ceramic Aerogel Insulation Film
Application
This ceramic fiber-reinforced silica aerogel composite material is ideal for use in electronic vehicles, providing excellent thermal insulation and fire retardancy for power batteries. It also serves well in areas where noise reduction and electromagnetic interference control are crucial, such as electronics and industrial applications.
If you want to customize tapes of other specifications, you can contact us to customize the specifications you want.
