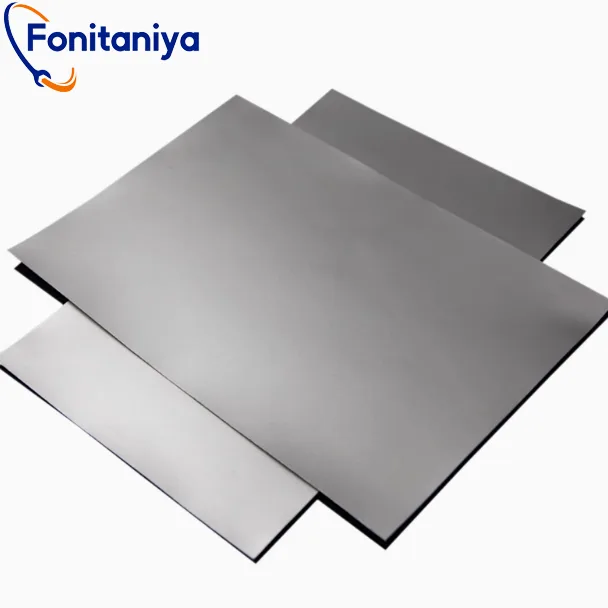

EMI Absorbing Sheet
- Wide electromagnetic interference (EMI) frequency coverage from 10 MHz to 6 GHz.
- Ultra-thin options, with thickness starting at 30 µm.
- Flexible and durable, easy to cut and apply to complex surfaces.
- Environmentally friendly: halogen-free and PVC-free.
Attributes of EMI Absorber
| Attribute | Value |
|---|---|
| Brand | Fonitaniya |
| Serial Number | FON-10050 |
| Material Structure | Polymer, Absorber, Double-Sided Adhesive, Release Paper |
| Frequency Range | 10 MHz ~ 6 GHz |
| Thickness Options | 30 µm, 50 µm, 100 µm, 200 µm, 300 µm, 500 µm |
| Standard Size | 300 mm x 200 mm (11.8 in x 7.9 in) |
| Permeability (at 3 MHz) | 110, 150, 180, 250 |
| Temperature Range | -25°C to 120°C (-13°F to 248°F) |
| Surface Impedance | 1 x 10⁶ Ω/□ |
| Environmental Compliance | Halogen-Free, PVC-Free, RoHS, HF |
Microwave Absorbing Material
The Fonitaniya EMI Absorber Sheet(FON 10150) is a high-performance material designed to minimize electromagnetic interference across a broad frequency range (10 MHz to 6 GHz). Composed of advanced polymer structures with integrated absorbers, this product is optimized for both shielding and noise suppression in high-frequency electronic applications. Its flexible, ultra-thin design ensures seamless integration with various device components.
Engineered for use in environments with high electromagnetic activity, this absorber sheet is ideal for mitigating cross-talk and improving device functionality. Applications include use within shielding enclosures, suppression of harmonic noise, and protection of sensitive components in FPCs, connectors, and ICs. Its RoHS and HF compliance guarantees reliability and safety for diverse industrial applications.

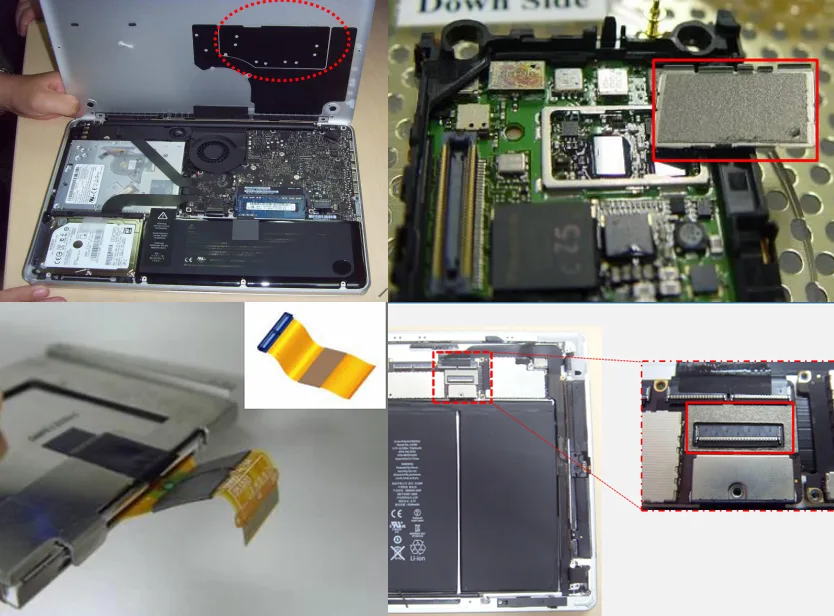

Application
-
Consumer Electronics:
- Use Case: Smartphones, laptops, and other consumer devices.
- Target EMI Sources:
- Main Antenna EMI: 900-1800 MHz.
- Chip Noise: 450-500 MHz.
- Communication Components: 900-3000 MHz (Bluetooth, Wi-Fi).
-
Wireless Devices:
- Use Case: Bluetooth and Wi-Fi modules.
- Target EMI Sources:
- Frequency Range: 2450-5200 MHz.
- Effect: Reduces cross-talk and signal degradation for better wireless communication.
-
High-Frequency Harmonics in RAM/DDR:
- Use Case: RAM/DDR components interfering with Wi-Fi signals.
- Target EMI: 2.4 GHz (Wi-Fi band).
- Solution: Applying absorbing materials with high magnetic permeability (e.g., 110 magnetic permeability series) to dampen harmonics.
-
Internal Shielding:
- Use Case: Enclosure shielding for sensitive components.
- Target EMI: 300-900 MHz.
- Effect: Mitigates cross-talk and reduces signal leakage in electronic systems.
-

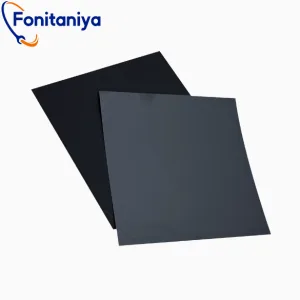

NFC/RFID and Wireless Charging:
- Use Case: Eliminate metal interference.
- Target EMI:
- NFC/RFID: 13.56 MHz.
- Wireless Charging: 110-250 kHz.
If you want to customize tapes of other specifications, you can contact us to customize the specifications you want.
