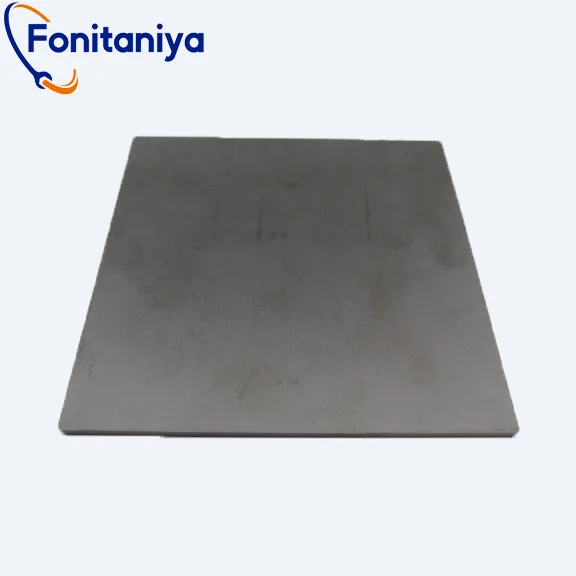

Ferrite Sheet for Wireless Power Transfer
- Effectively isolates metal electromagnetic eddy current interference.
- Enhances electromagnetic wave transmission strength and range.
- Excellent flexibility, fold resistance, and easy die-cutting.
- Low thermal resistance; compliant with RoHS and HF standards.
Attributes of Ferrite Sheet for Wireless Charging
| Attribute | Value |
|---|---|
| Brand | Fonitaniya |
| Serial Number | FON-10153 |
| Material | Mn-Zn Ferrite |
| Frequency Range | 10 MHz – 6 GHz |
| Thickness Options | 30 µm, 50 µm, 100 µm, 200 µm, 300 µm |
| Standard Size | 300 mm x 200 mm (11.81 in x 7.87 in) |

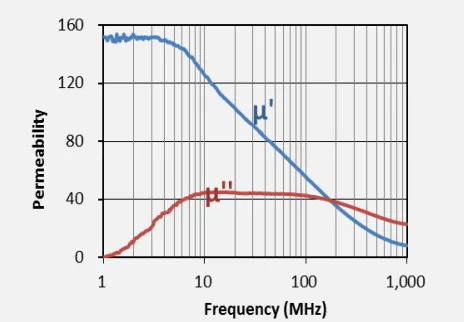

| Magnetic Permeability (3 MHz) | 150 |
| Temperature Range | -25°C to 120°C (-13°F to 248°F) |
| Surface Impedance | 1 x 10⁶ Ω/□ |
| Environmental Standards | Halogen Free, PVC Free, RoHS Compliant |
| Flexibility | Pre-cracked structure for mechanical flexibility |
| Customization | Custom shapes, sizes, and thicknesses available upon request |

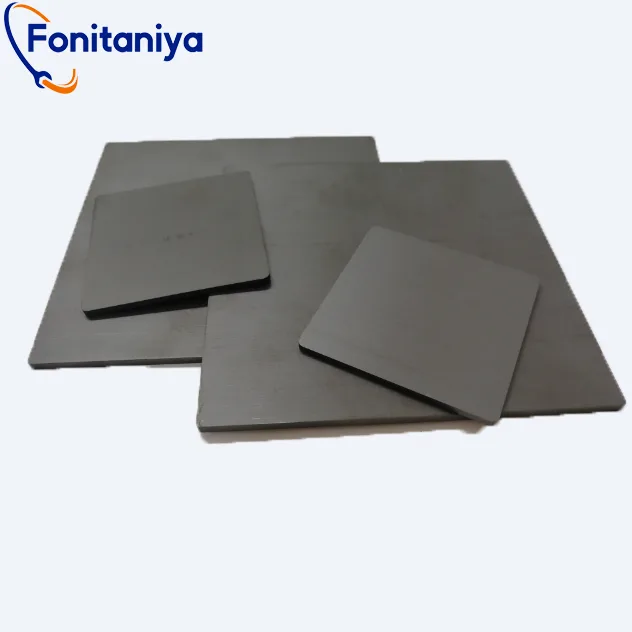

Ferrite Plate for Preventing Eddy Currents
The Fonitaniya Ferrite Plate(FON 10153) is a high-performance Mn-Zn ferrite material designed specifically for wireless charging applications. With its superior electromagnetic isolation properties, it effectively reduces eddy current interference and enhances electromagnetic wave transmission strength and distance. Its pre-cracked structure ensures excellent flexibility, making it resistant to bending and easy to process.
This ferrite plate is compatible with both QI and A4WP wireless charging standards and operates efficiently within a wide frequency range of 10 MHz to 6 GHz. It also adheres to strict environmental standards, being halogen-free, PVC-free, and RoHS compliant. Available in multiple thicknesses and customizable shapes, it is an ideal choice for cutting-edge wireless charging solutions.

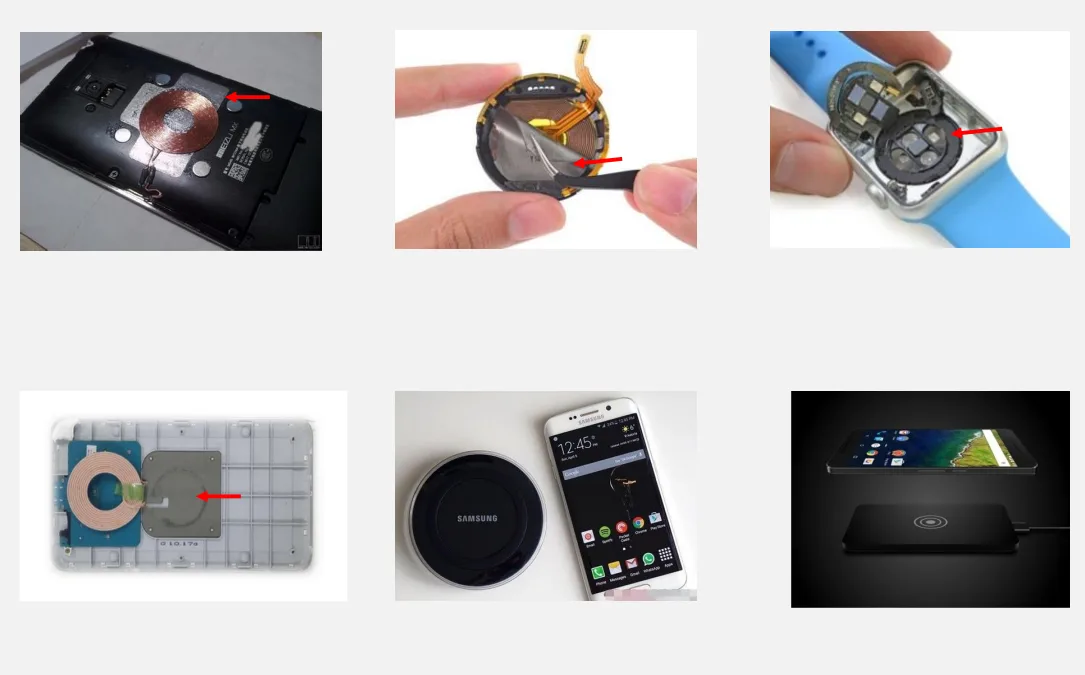

Application Description
- Wireless charging pads and devices compliant with QI and A4WP standards.
- Enhanced performance in electromagnetic shielding for electronic devices.
- Flexible and customizable solutions for advanced circuit designs.
If you want to customize tapes of other specifications, you can contact us to customize the specifications you want.
When can I get my quotation?
We will provide you with a detailed quotation as soon as we receive your inquiry. Typically, we will send you a quote within 24 hours. If your requirements are complex or need custom services, it might take a bit longer, but we will keep you informed of the progress promptly.
What is your order schedule?
After confirming your order, we will schedule production based on your requirements and our production plan. Generally, the production cycle for standard orders is 2-3 weeks. If you have an urgent order, please contact us as soon as possible. We will do our best to accommodate your request and arrange expedited production.
Can I get samples?
Yes, we are happy to provide samples for you. Please contact our sales team with your specific needs and sample type, and we will arrange for the samples to be sent to you as soon as possible. Some samples may require a small fee, but in most cases, we offer free samples for testing and evaluation.
Can I print my logo on the tape?
Absolutely. We offer customization services and can print your logo on the tape according to your requirements. Please provide a high-quality logo file and specific printing requirements. Our design team will create a draft design for your approval. We will also provide samples for you to confirm before production.
What if I don't have detailed requirements?
If you are unsure about the specific requirements, our technical team is more than happy to offer professional advice. Just tell us your application scenario and basic needs, and we will recommend the most suitable tape solution based on our extensive experience and wide range of products. We can also provide sample testing to ensure our products meet your needs.
