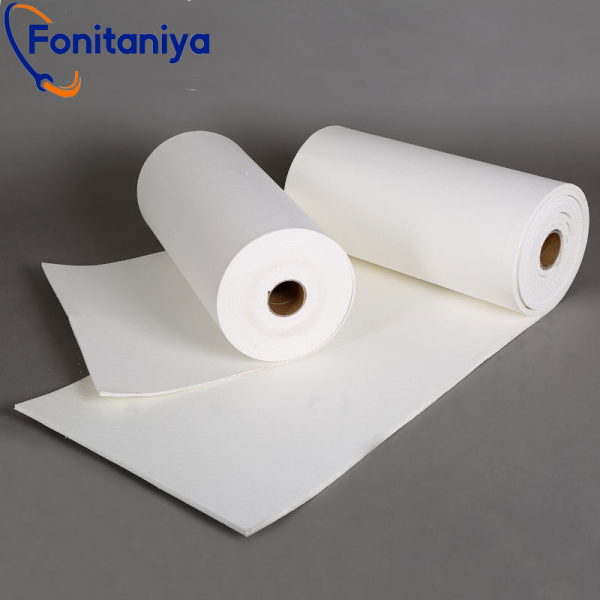

Fibreglass Aerogel Blanket
- High-performance insulation combines fiberglass and aerogel, offering superior thermal protection up to 650°C.
- Lightweight with excellent hydrophobicity (≥98%) and non-combustible (A1 grade), enhancing durability and safety.
- Customizable thickness (3mm to 10mm) and width, with low thermal conductivity for efficient heat management.
- Environmentally friendly, meeting RoHS and REACH standards, ideal for industrial, automotive, and chemical applications.
Product Attributes: Fibreglass Aerogel Blanket
- Brand: Fonitaniya
- Serial Number: FON-10106
- Material: Approximately 70% fiberglass and 30% aerogel
- Maximum Temperature Resistance: 600°C
- Density: 200±20 kg/m³
- Thermal Conductivity:
- 25°C: ≤0.020 W/m·K
- 200°C: ≤0.027 W/m·K
- 300°C: ≤0.035 W/m·K
- 500°C: ≤0.080 W/m·K
- Combustion Class: A1 (GB/T 8624-2012), V0 (UL 94-2013)
- Hydrophobic Rate: ≥98%
- Compliance: RoHS, REACH, ELV
- Tensile Strength: 800 KPa
- Compression Performance:
- 10%, 20 KPa
- 25%, 120 KPa
Fibregalss Aerogel Blanket
The FON-10106 is a high-performance insulation material composed of approximately 70% fiberglass and 30% aerogel. It utilizes advanced fiber reinforcement technology, integrating nano-porous aerogel with glass fiber needle-punched felt. This innovative composition results in a lightweight, efficient thermal insulator with a low thermal conductivity, ideal for use in high-temperature environments such as up to 650°C.
Widely applied in industrial and energy sectors, this insulation blanket serves critical roles in battery insulation, thermal runaway barriers, and fire protection for vehicles and large marine vessels. It is also used in thermal management of chemical storage tanks and high-temperature pipeline equipment. The fibreglass aerogel mat offers exceptional hydrophobicity with a rate of ≥98%, which makes it suitable for environments requiring moisture resistance.
Major corporations like ExxonMobil, Shell, Chevron, and PetroChina have implemented fiberglass aerogel insulations for pipeline and equipment protection due to its superior durability and safety features. Recognized for its environmental compliance, adhering to RoHS and REACH regulations, the FRA-G600 product is not only effective but also safe for broad industrial applications.
Application
If you want to customize tapes of other specifications, you can contact us to customize the specifications you want.
When can I get my quotation?
We will provide you with a detailed quotation as soon as we receive your inquiry. Typically, we will send you a quote within 24 hours. If your requirements are complex or need custom services, it might take a bit longer, but we will keep you informed of the progress promptly.
What is your order schedule?
After confirming your order, we will schedule production based on your requirements and our production plan. Generally, the production cycle for standard orders is 2-3 weeks. If you have an urgent order, please contact us as soon as possible. We will do our best to accommodate your request and arrange expedited production.
Can I get samples?
Yes, we are happy to provide samples for you. Please contact our sales team with your specific needs and sample type, and we will arrange for the samples to be sent to you as soon as possible. Some samples may require a small fee, but in most cases, we offer free samples for testing and evaluation.
Can I print my logo on the tape?
Absolutely. We offer customization services and can print your logo on the tape according to your requirements. Please provide a high-quality logo file and specific printing requirements. Our design team will create a draft design for your approval. We will also provide samples for you to confirm before production.
What if I don't have detailed requirements?
If you are unsure about the specific requirements, our technical team is more than happy to offer professional advice. Just tell us your application scenario and basic needs, and we will recommend the most suitable tape solution based on our extensive experience and wide range of products. We can also provide sample testing to ensure our products meet your needs.
