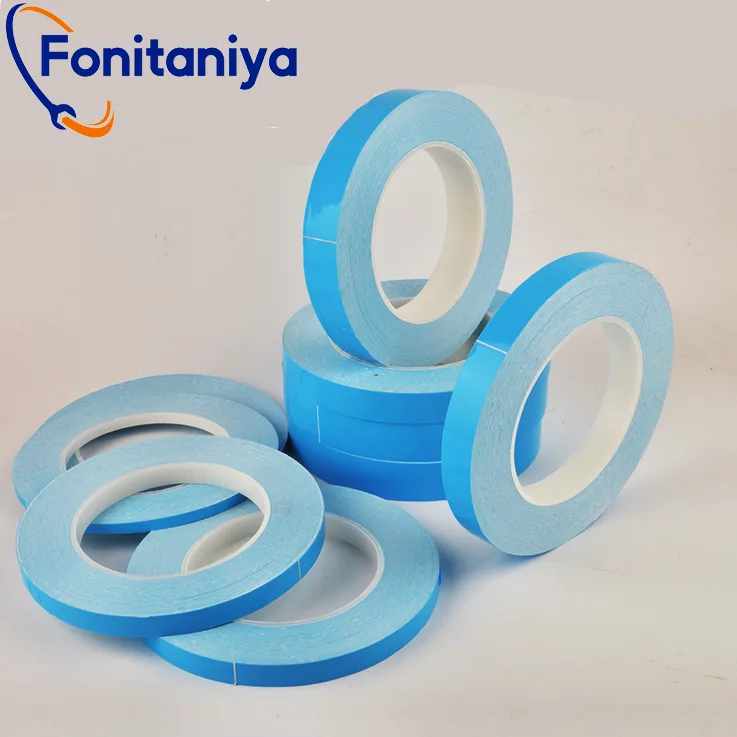

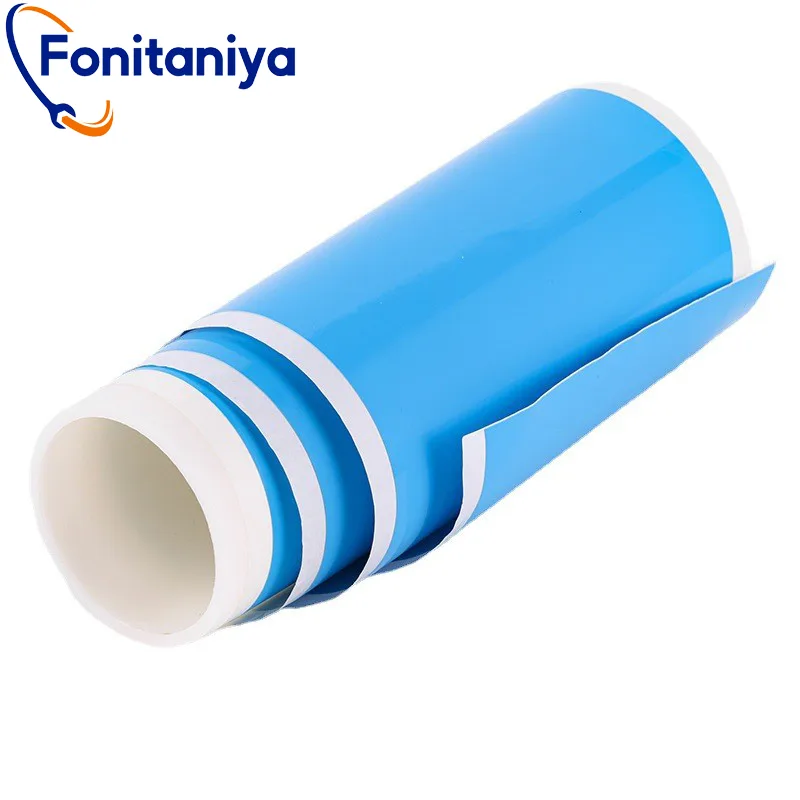

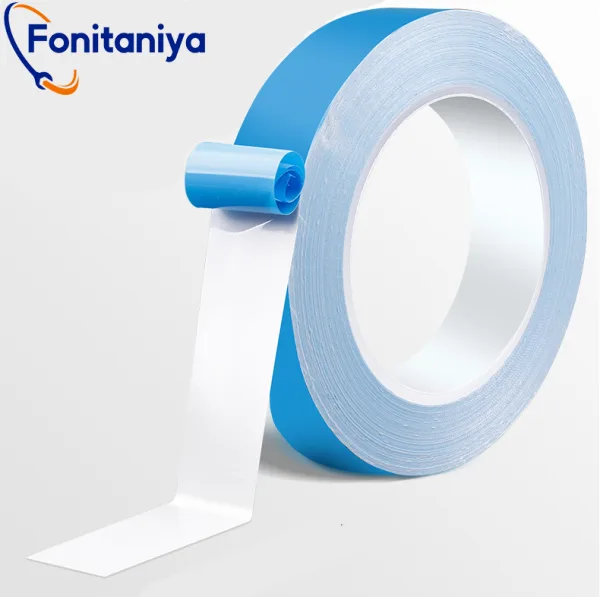

Thermally Conductive Double Sided Tape
- High-performance thermally conductive PSA for optimal heat transfer.
- Suitable for electronic components with excellent adhesion and insulation properties.
- Available in various thicknesses for customized applications.
- Easy to apply on uneven surfaces with good compressibility and flexibility.
Attributes of Double Sided Tape for Heat Transfer
| Brand | Fonitaniya |
| Serial Number | FON-10083 |
| Material | Glass Fabric | N/A (depending on model) |
| Adhesive | Thermally Conductive Pressure Sensitive Adhesive |
| Color | White |
| Release Liner | Blue PE Film | White Release Paper |
| Thickness (mm) | 0.05 (FON-10083-05), 0.10 (FON-10083-10), 0.15 (FON-10083-15), 0.20 (FON-10083-20), 0.25 (FON-10083-25), 0.30 (FON-10083-30), 0.40 (FON-10083-40) |
| Adhesion (N/25mm) | ＞10.78 – 15.68 (varies by model) |
| Thermal Conductivity (W/m-k) | 1.2 |
| Insulation Strength (KV) | 1.57 – 5.0 (varies by model) |
| Thermal Impedance (C*in²/W) | 0.414 – 1.525 (varies by model) |
| Temperature Resistance (Short Term, ℃/℉) | 120℃ (248℉) |
| Temperature Resistance (Long Term, ℃/℉) | 80℃ (176℉) |
| Width (mm/inches) | 2 to 1030 mm (0.08 to 40.55 inches) | Custom |
| Length (m/feet) | 25 m (82 ft), 50 m (164 ft) | Custom |
Glass Cloth Based Thermally Conductive Tape
The Fonitaniya thermally conductive tape(FON-10083) series is designed to provide an efficient heat-transfer path between heat-generating electronic components and cooling devices such as heat sinks. These tapes are constructed with high tacky thermally conductive pressure-sensitive adhesive (PSA) and are ideal for applications that demand high adhesion and excellent thermal conductivity.

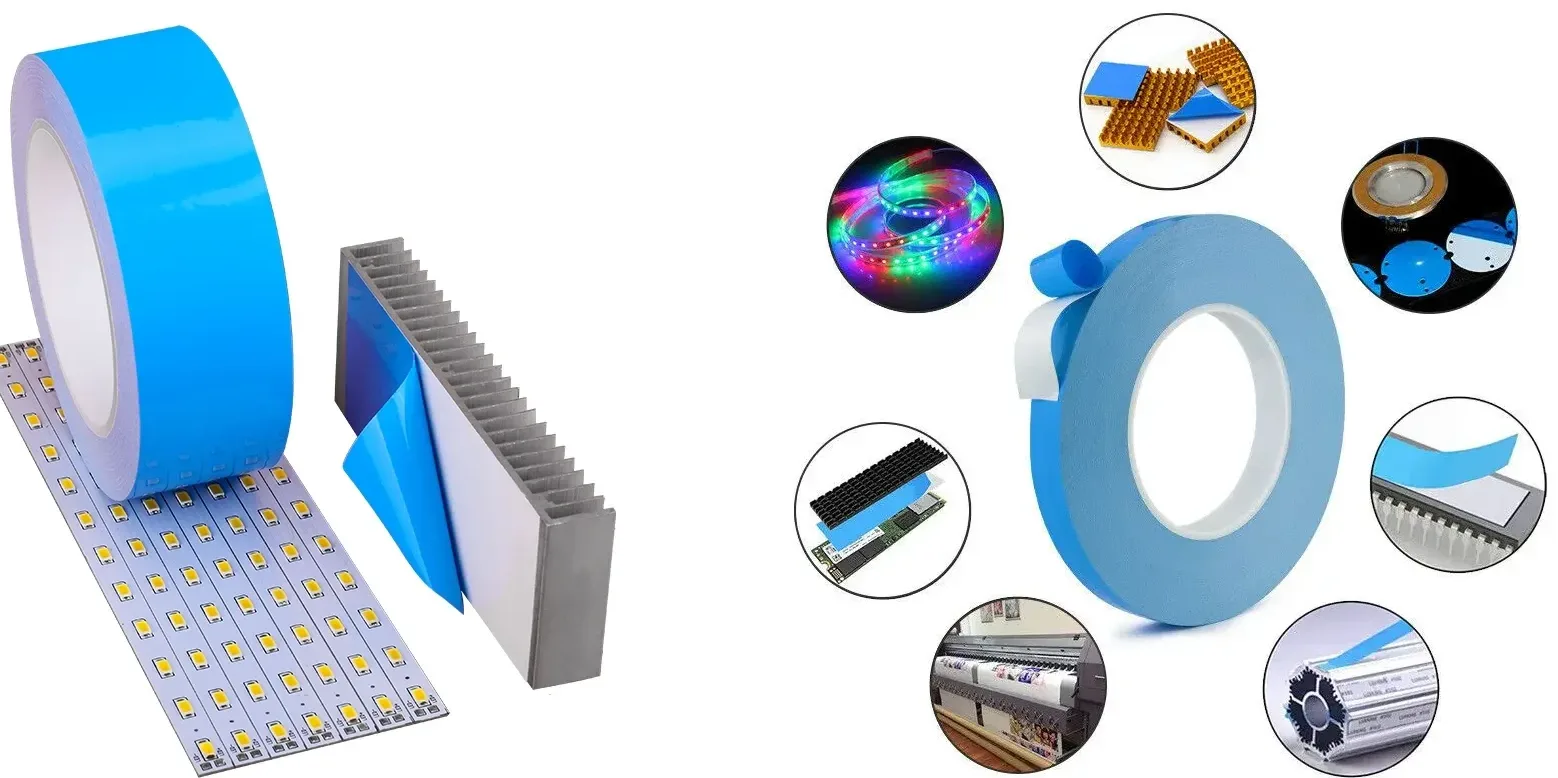

Available in multiple thicknesses, this tape ensures compatibility with a wide range of surfaces, making it suitable for applications in the assembly of LED modules, DDR-RAM modules, and other electronic components like ICs and CPUs. Its flexibility, insulation properties, and reliable temperature resistance make it an economical and effective choice for various industrial and electronic uses.
If you want to customize tapes of other specifications, you can contact us to customize the specifications you want.
When can I get my quotation?
We will provide you with a detailed quotation as soon as we receive your inquiry. Typically, we will send you a quote within 24 hours. If your requirements are complex or need custom services, it might take a bit longer, but we will keep you informed of the progress promptly.
What is your order schedule?
After confirming your order, we will schedule production based on your requirements and our production plan. Generally, the production cycle for standard orders is 2-3 weeks. If you have an urgent order, please contact us as soon as possible. We will do our best to accommodate your request and arrange expedited production.
Can I get samples?
Yes, we are happy to provide samples for you. Please contact our sales team with your specific needs and sample type, and we will arrange for the samples to be sent to you as soon as possible. Some samples may require a small fee, but in most cases, we offer free samples for testing and evaluation.
Can I print my logo on the tape?
Absolutely. We offer customization services and can print your logo on the tape according to your requirements. Please provide a high-quality logo file and specific printing requirements. Our design team will create a draft design for your approval. We will also provide samples for you to confirm before production.
What if I don't have detailed requirements?
If you are unsure about the specific requirements, our technical team is more than happy to offer professional advice. Just tell us your application scenario and basic needs, and we will recommend the most suitable tape solution based on our extensive experience and wide range of products. We can also provide sample testing to ensure our products meet your needs.
